ISO 9001 and 10 Year guarantee Clip for Facade Support System

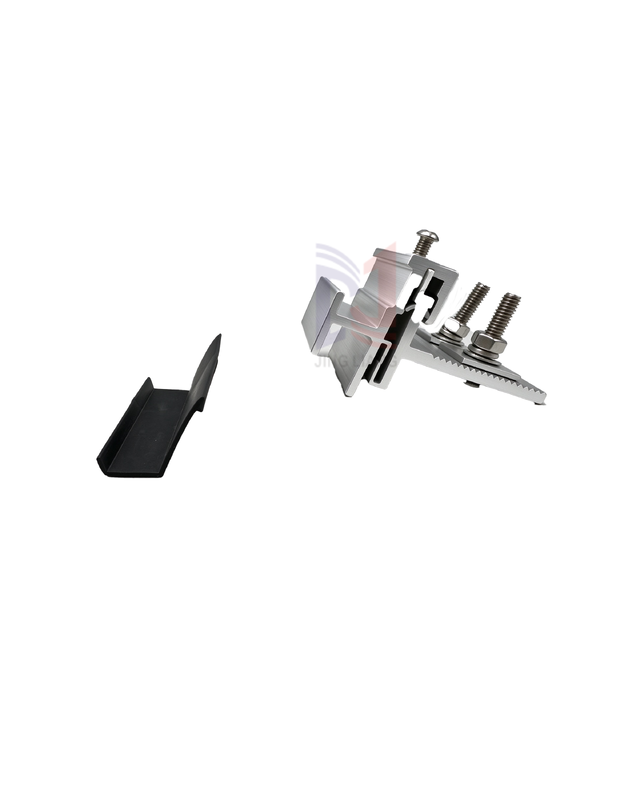

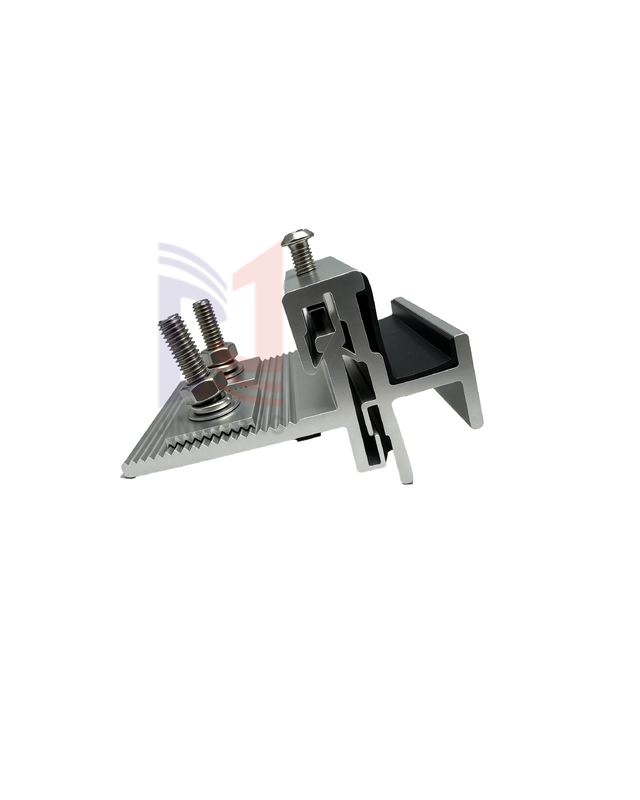

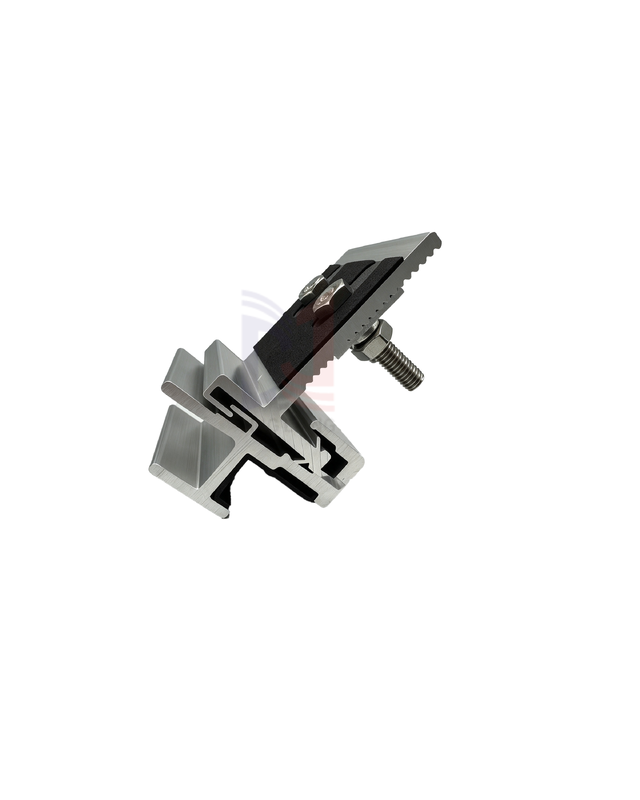

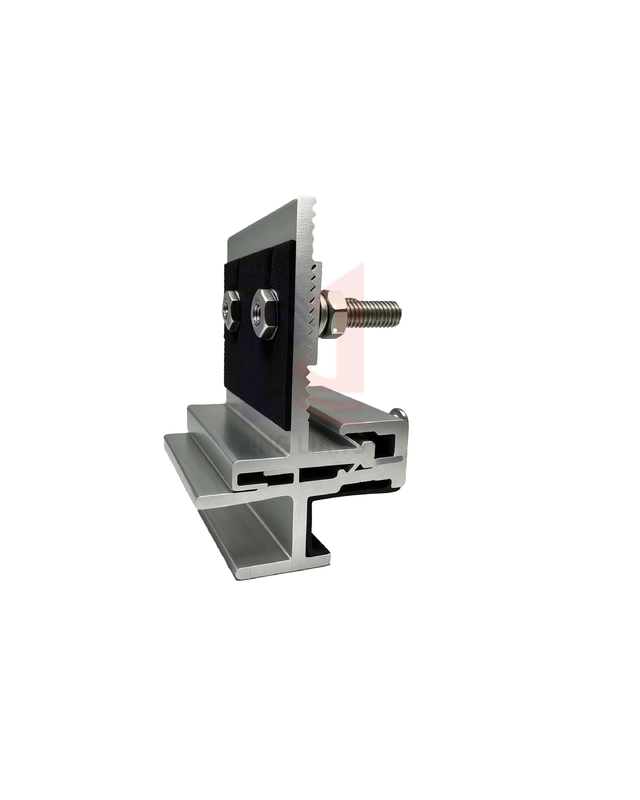

This clip is a key component of the adjustable aluminum alloy clip system for stone facade support. The main profile is manufactured from 6063-T5 or 6063-T6 aluminum alloy through integrated extrusion molding, delivering stable strength, light weight, and resistance to atmospheric corrosion. Surface treatment options include anodizing and powder coating, making the clip suitable for coastal and rainy outdoor environments without rusting. An EPDM strip isolates the aluminum profiles from the panels, reducing shock and slip, preventing bimetallic galvanic corrosion, and cushioning stress caused by thermal expansion and contraction.

• Strong adjustability: Double adjustment via elongated holes and serrations enables three-dimensional leveling, adapting to on-site rail construction errors and making it easier to control curtain wall flatness.
• Safe independent support: Each panel bears stress independently, so replacing one panel does not disturb surrounding panels — ideal for external wall maintenance.
• Anti-corrosion, noise reduction, and shock absorption: The EPDM rubber pad provides insulation and vibration isolation, reducing abnormal noise during high winds and thermal expansion/contraction, and preventing direct contact corrosion between aluminum and stone or porcelain panels.
• Compatible with thin plates: Specially developed for porcelain rock slabs, large-sized ceramic slabs, and thin stone — distinct from traditional heavy stone pendants.
• Easy installation: Modular components and dry-hanging construction eliminate wet operations and shorten the construction period.
• Simple appearance: A semi-concealed pendant with minimal exposed surface for a clean, attractive facade.

• Building types: Office buildings, commercial complexes, hotels, external wall curtain walls of public venues, and dry-hanging walls in indoor lobbies.
• Suitable climates: Rainy, coastal salt-spray, and large temperature-difference areas — especially suited to overseas curtain wall projects in the Middle East and Africa.

Our cladding support systems include comprehensive technical support and services to ensure proper installation and long-term performance. Our expert team assists with design, product selection, and installation details so that your project meets all safety and code requirements.

Products are packaged using environmentally conscious, low-carbon materials in custom-made packaging designed to protect against transportation damage. We offer multiple shipping options — including ground, air, and sea transportation — and our team works with you to determine the optimal solution for your specific needs.
