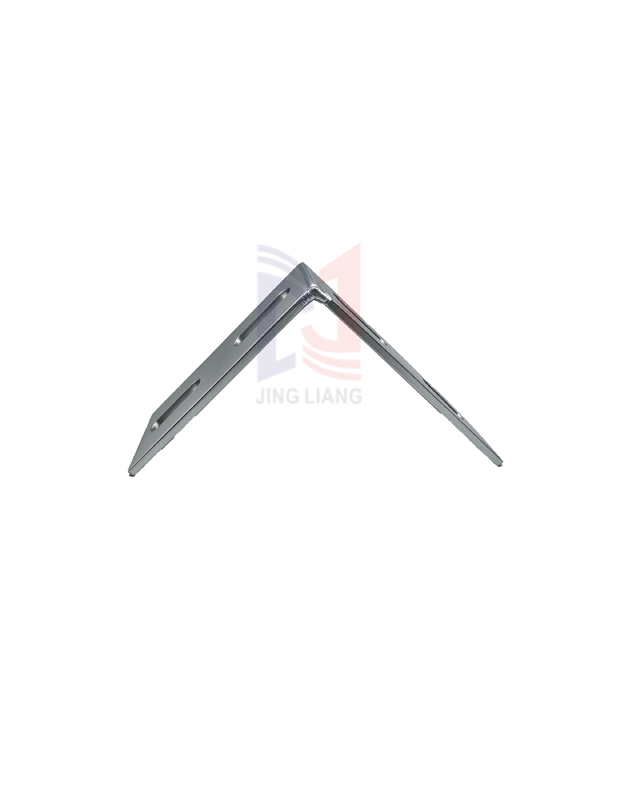

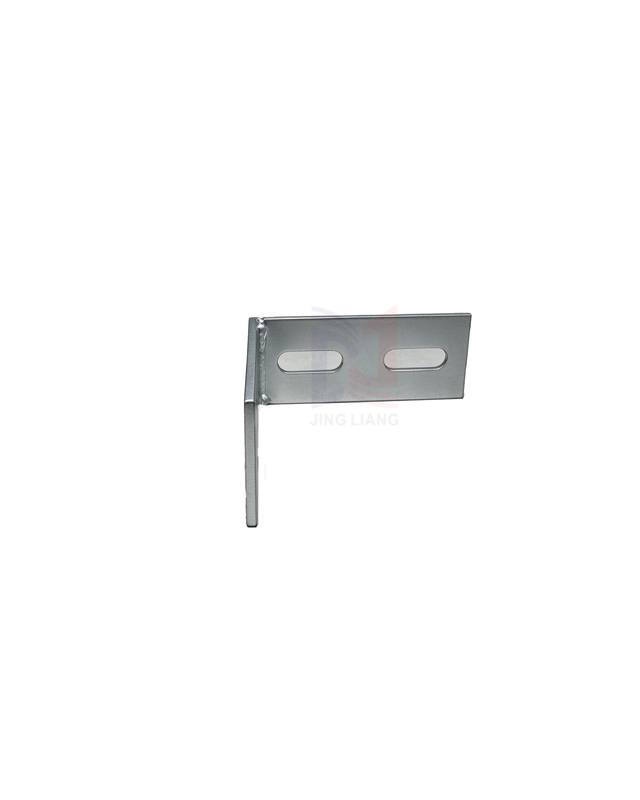

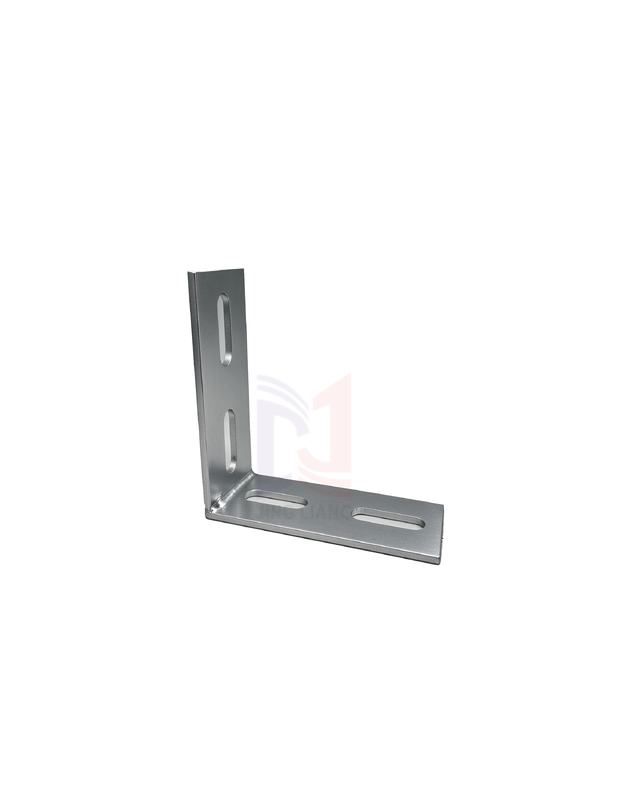

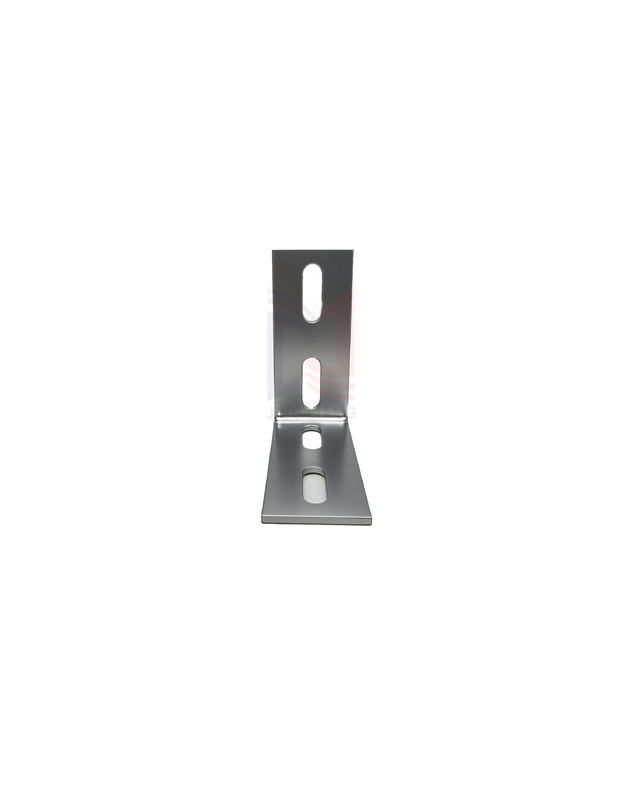

Factory supply and Easy Installation L Bracket for Facade Support Systm

This welded extended L-shape angle bracket is manufactured from Q235B carbon steel as standard, with a hot-dip galvanized anti-corrosion finish applied to the surface. It is formed by welding two steel plates together — distinguishing it from a single-bent angle bracket — and features an extended L-shaped structure. The long circular hole serves as the core adjustment structure, allowing installation and fine tuning in both the X and Y directions.

• Extended board surface: Compared with standard short corner brackets, it offers a longer load-bearing distance and greater bearing capacity, making it suitable for installation positions that require overhanging and large spans.
• Bidirectional adjustable: Two-sided waist-shaped (slotted) holes allow left-right and front-back alignment during installation, eliminating construction errors between the keel and embedded parts and providing a high fault tolerance rate for on-site installation.
• Welding structure: Plate thickness selection is flexible, and the thick-plate scheme can achieve higher loads, with a higher load-bearing limit than thin-material bent angle brackets.
• Anti-corrosion coating: The galvanized layer isolates water vapor and delays rusting, making the bracket suitable for outdoor working conditions.

1. Stone curtain walls, aluminum veneer curtain walls, and ceramic panel curtain walls.
2. Support for external wall insulation integrated boards and external wall decorative boards.
3. Steel structure auxiliary brackets, railing bases, and canopy secondary supports.
4. Photovoltaic brackets and fixed brackets for outdoor equipment.
5. Indoor large metal decorative shapes and steel frame adapters.

Our cladding support systems include comprehensive technical support and services to ensure proper installation and long-term performance. Our expert team assists with design, product selection, and installation details so that your project meets all safety and code requirements.

Products are packaged using environmentally conscious, low-carbon materials in custom-made packaging designed to protect against transportation damage. We offer multiple shipping options — including ground, air, and sea transportation — and our team works with you to determine the optimal solution for your specific needs.
