Factory Provide and Competitive Price Clip for Facade Support System

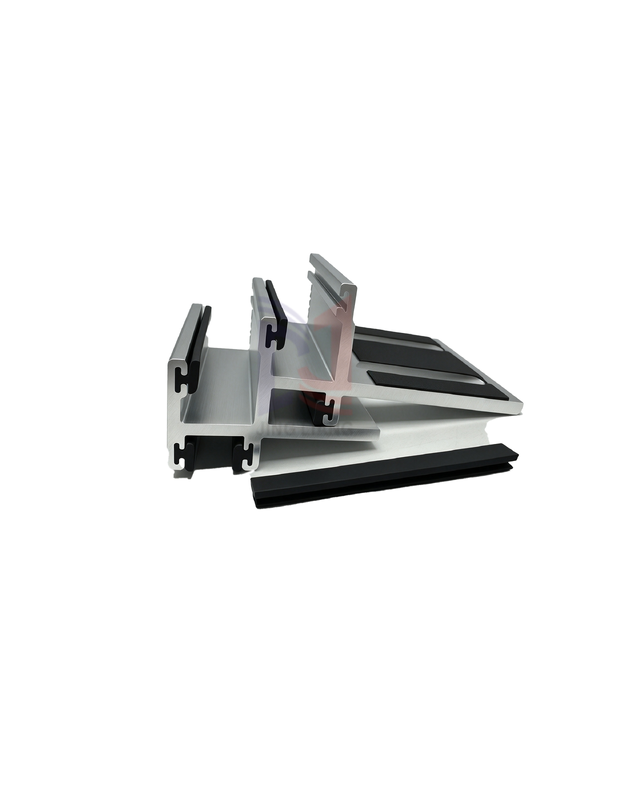

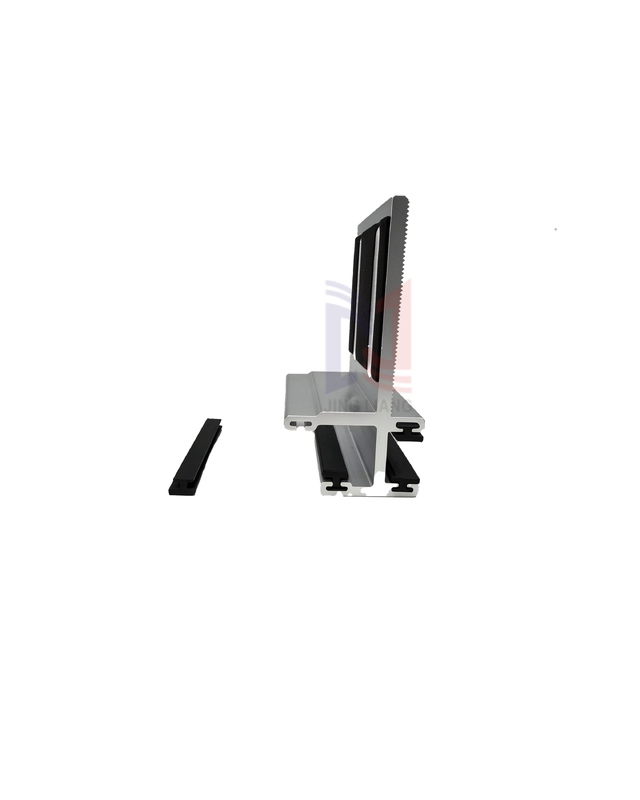

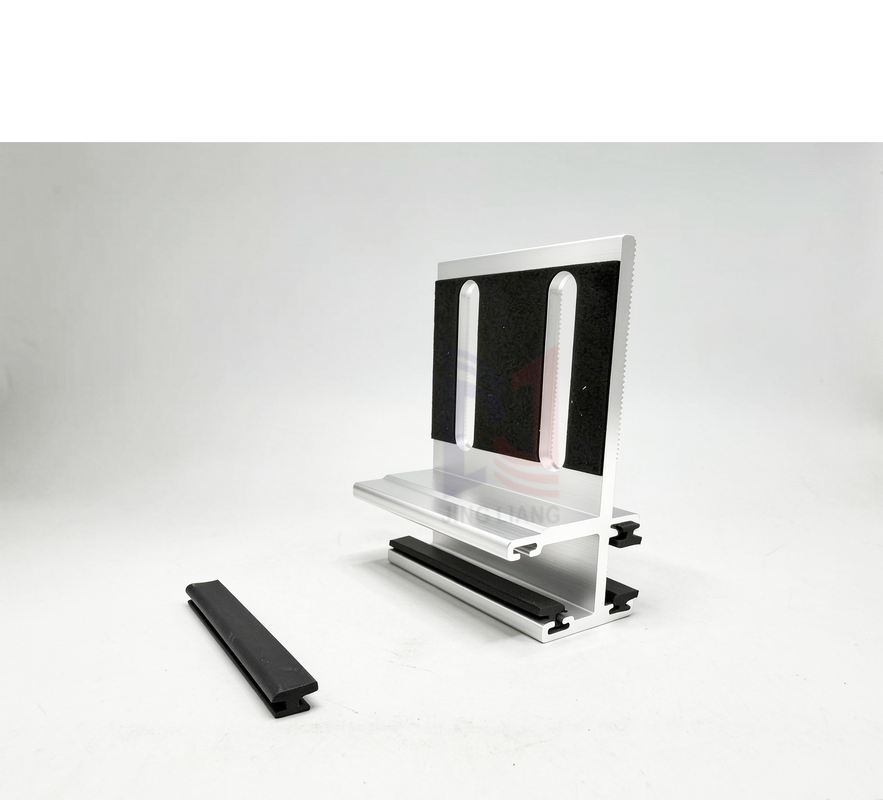

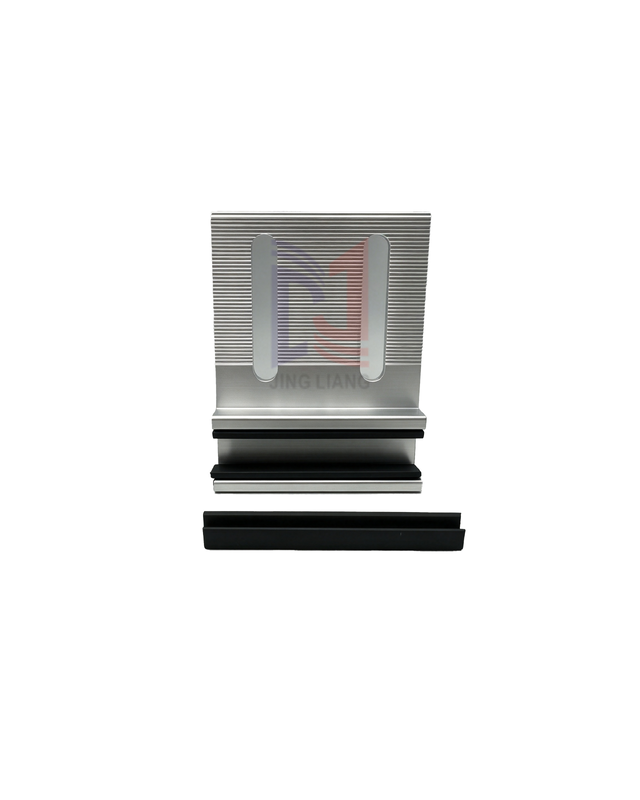

This clip is a back-bolt type aluminum alloy clip designed for facade support systems. The main profile is manufactured from 6063-T5 or 6063-T6 aluminum alloy through integrated extrusion molding, delivering stable strength, light weight, and resistance to atmospheric corrosion. Surface treatment options include anodizing and powder coating, making the clip suitable for coastal and rainy outdoor environments where rust prevention is essential. An EPDM strip is embedded in the aluminum profile slot to provide additional cushioning and positional limiting.

• Strong adjustability: Double adjustment via elongated holes and serrations enables three-dimensional leveling, adapting to on-site rail construction errors and making curtain wall flatness easier to control.
• Safe independent support: Each panel bears stress independently, so replacing a single panel does not disturb surrounding panels — ideal for external wall maintenance.
• Anti-corrosion, noise reduction, and shock absorption: The EPDM rubber pad provides insulation and vibration isolation, reducing abnormal noise during high winds and thermal expansion and contraction, while preventing direct contact corrosion between aluminum and stone or porcelain panels.
• Compatible with thin plates: Specially developed for porcelain rock slabs, large-format ceramic slabs, and thin stone — distinct from traditional heavy stone pendants.
• Easy installation: Modular components and dry-hanging construction eliminate wet operations and shorten the construction period.
• Simple appearance: A semi-concealed pendant with minimal exposed surface for a clean, attractive facade.

Suitable for commercial complexes, hotels, office buildings, and public venue facades. Particularly recommended for dry, rainy, and coastal areas with high salt spray, including overseas projects in Africa, the Middle East, and Southeast Asia.

Our cladding support systems include comprehensive technical support and services to ensure proper installation and long-term performance. Our expert team assists with design, product selection, and installation details so that your project meets all safety and code requirements.

Products are packaged using environmentally conscious, low-carbon materials in custom-made packaging designed to protect against transportation damage. We offer multiple shipping options — including ground, air, and sea transportation — and our team works with you to determine the optimal solution for your specific needs.
