Name: Customized and Anticorrosion Aluminum Bracket for Facade Support System
Brand: Hebei Jingliang Aluminum Alloy Products Co., Ltd
SKU: 80*37*5mm
Availability: InStock

Home > Products > Cladding Support System >

Customized and Anticorrosion Aluminum Bracket for Facade Support System

customized aluminum facade bracket

anticorrosion facade support bracket

aluminum bracket for facade system

Place of Origin:

China

Brand Name:

Jingliang

Certification:

ISO

Model Number:

80*37*5mm

Request A Quote

Customized and Anticorrosion Aluminum Bracket for Facade Support System

Product Details

Material:

Aluminum 6063,6061.6005,Custimized

Surface:

Mill Finish, Anodizing, Coating

Size:

80*37*5mm

Application:

Exterior Wall Decoration

Installation:

Easy

Warranty:

10 Years

Highlight:

customized aluminum facade bracket

anticorrosion facade support bracket

aluminum bracket for facade system

Payment & Shipping Terms

Minimum Order Quantity

200 pcs

Price

Negotiable

Packaging Details

Cartons packaging

Delivery Time

15 working days

Payment Terms

L/C, T/T

Supply Ability

20000 per 15 working days

ISO 9001 Aluminum Clip and 10 Year guarantee for Facade Support System

Get Best Price

Energy Efficient and Anti Corrosion Aluminum Clip for Brick Facade Support System

Get Best Price

ISO 9001 Aluminum Clip and Earthquake Resistant for Facade Support System

Get Best Price

Energy Efficient and Anti Corrosion Facade Joint for Facade Support System

Get Best Price

+8618522900527

info@hbjllzp.com

Contact Now

Product Description

Customized Anticorrosion Aluminum Bracket for Facade Support System

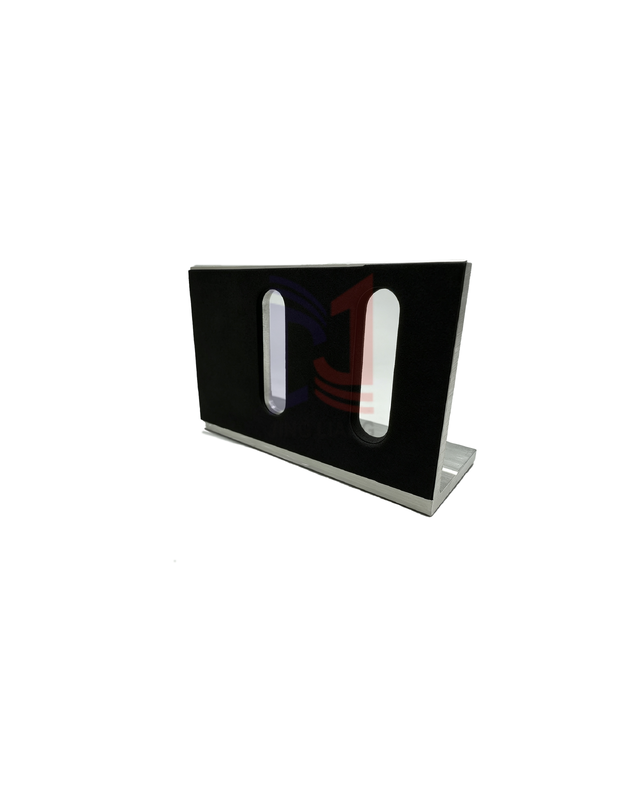

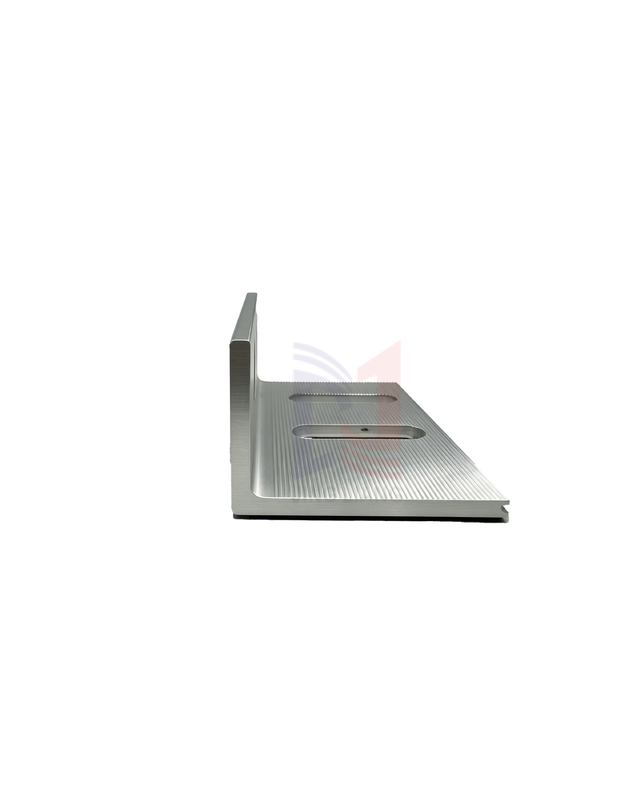

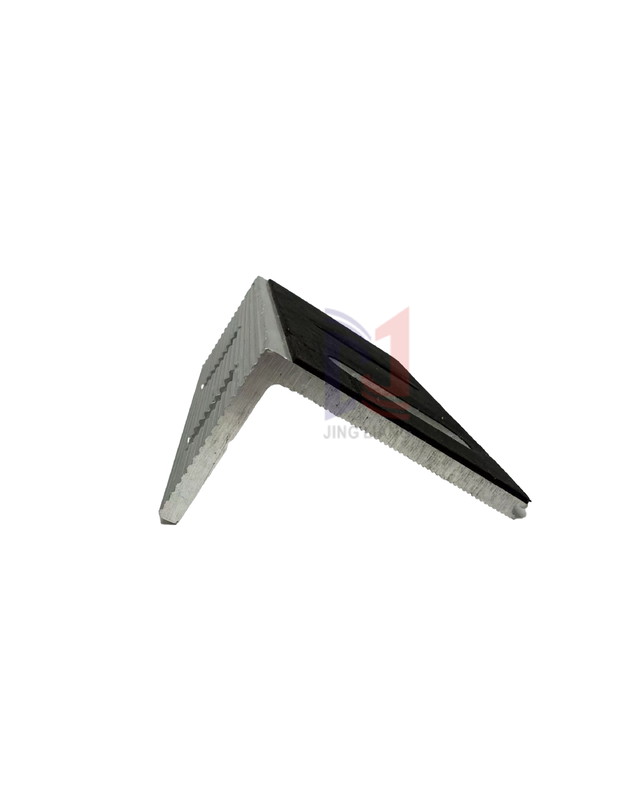

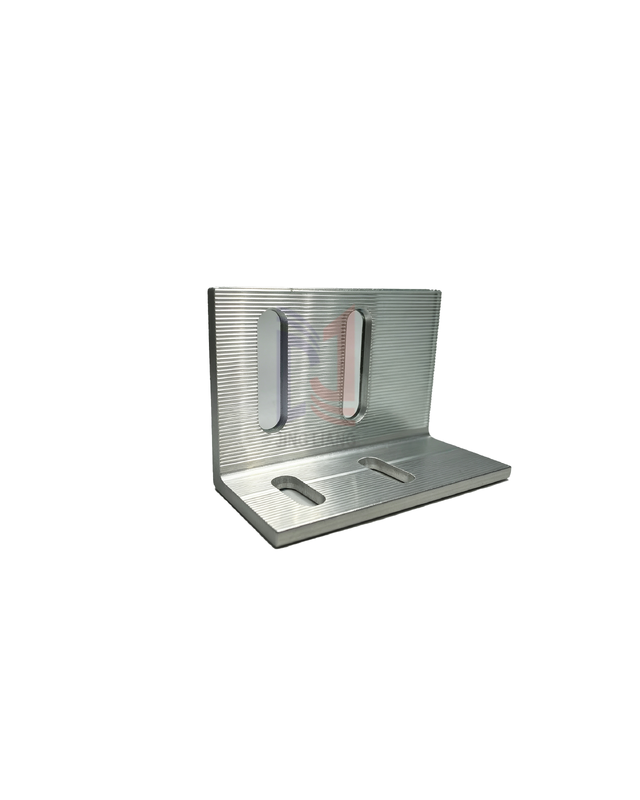

This L-shaped bracket is specifically designed for facade support systems. Extruded from 6063-T5 aluminum alloy, it offers excellent extrudability, fine surface finish, and high cost-effectiveness, making it the preferred choice for conventional curtain wall applications.

The surface can be anodized (providing high wear resistance and strong metallic texture as shown in the sample) or painted according to customer requirements.

Product Features

Structural Design: L-shaped right-angle profile with slotted adjustment holes on the plate, enabling horizontal and vertical fine-tuning during installation to compensate for fabrication and on-site tolerances. Notches are reserved at the ends to accommodate supporting thermal gaskets and limiting structures.
Anti-slip Design: Fine vertical knurling on the working surface increases friction with profiles and panels, preventing sliding and enhancing overall displacement resistance and seismic performance of the curtain wall system.
Performance Advantages: Lightweight and corrosion-resistant construction suitable for long-term outdoor service. Features stable strength and will not rust. Unlike galvanized steel brackets, eliminates risk of galvanic corrosion.

Applications

Transition fasteners between panels and rails for terracotta panel curtain walls, stone curtain walls, aluminum veneer curtain walls, and precast cladding panels
Corner connection and fixing of framed glass curtain walls and railing aluminum profiles

Technical Support and Services

Our cladding support systems include comprehensive technical support and services to ensure proper installation and long-term performance. Our expert team provides assistance with design, product selection, and installation details to ensure your project meets all safety and code requirements.

Packaging and Shipping

Products are packaged using environmentally conscious, low-carbon materials in custom-made packaging designed to protect against transportation damage. We offer various shipping options including ground, air, and sea transportation, with our team working to determine the optimal solution for your specific needs.
