ISO 9001 Aluminum Clip and Earthquake Resistant for Facade Support System

Product Description

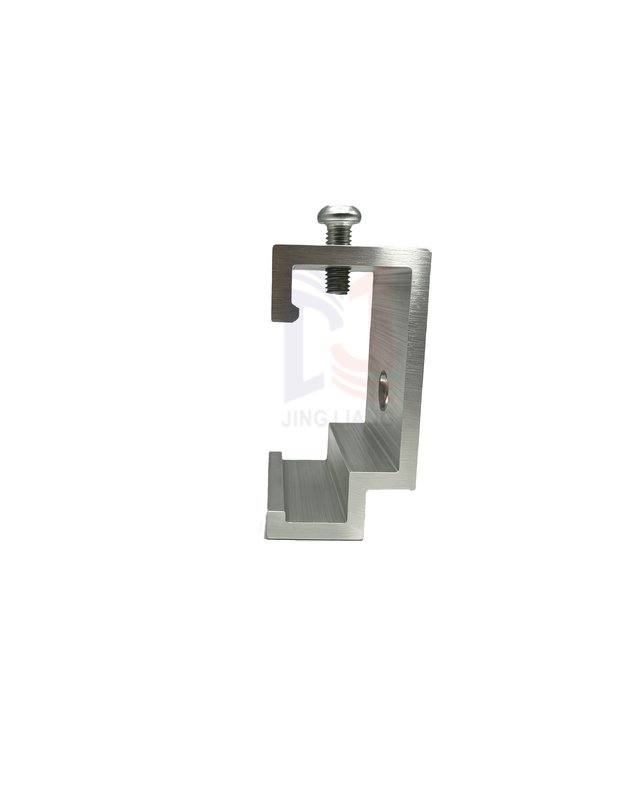

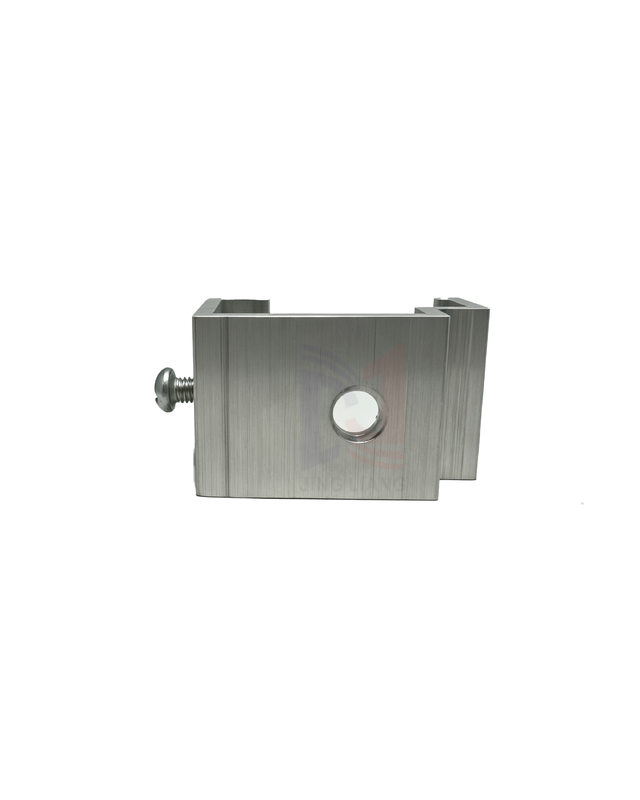

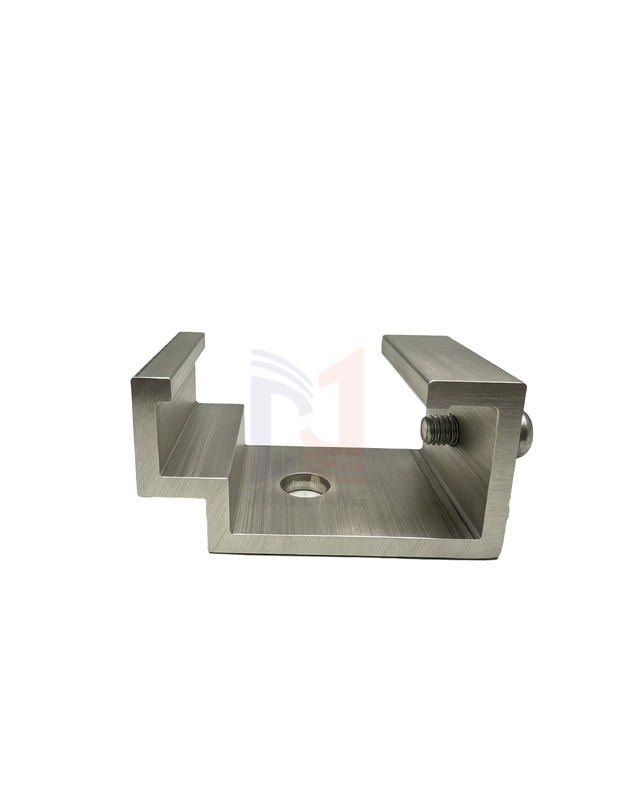

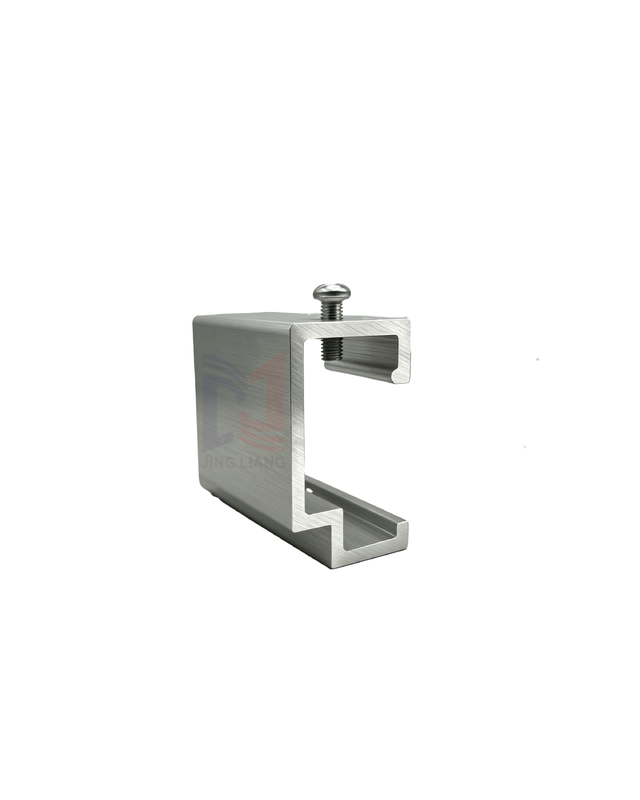

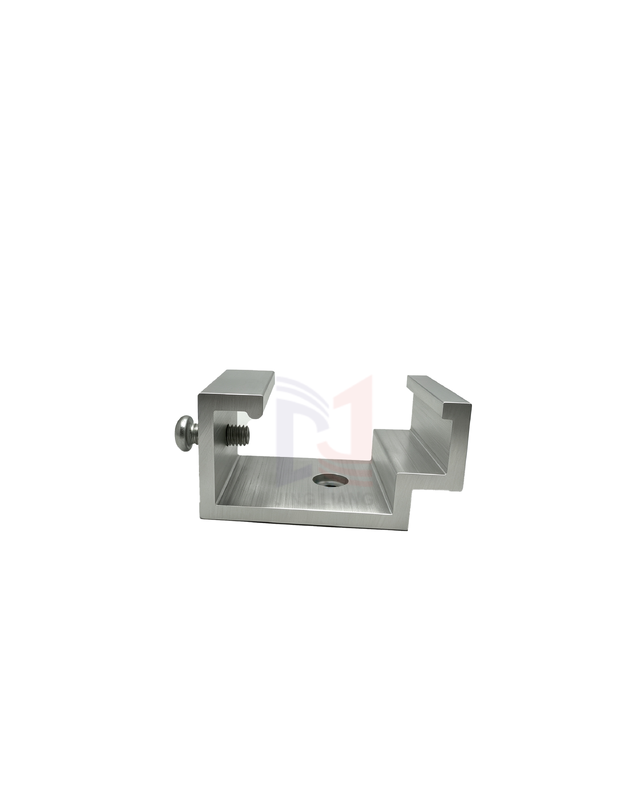

This is a clip sepcially design for stone facade support system with aluminum alloy  6063-T5 or 6063-T6 as its material. Its surface treatment . It is used for the backing system of stone and ceramic panel curtain walls, featuring bolt compression and positioning, and is a commonly used connector in exterior curtain wall projects. Its model is JZ-S-1027.

Features

1.corrosion-resistant, suitable for outdoor exterior walls, with strong weather resistance.

2.With top adjustment bolt, when it is tightened, presses the plate down to clamp the stone, allowing fine adjustment of the clamping gap to accommodate a certain range of stone thicknesses

3.The holes are reserved on the base  which can be directly fixed to the curtain wall corner brackets and aluminum rails, making installation and adjustment convenient

Application

Granite and marble stone curtain wall exterior wall support system
External wall projects for public buildings, commercial buildings, hotels, and villas

Technical Support and Services
Our cladding support systems include comprehensive technical support and services to ensure proper installation and long-term performance. Our expert team provides assistance with design, product selection, and installation details to ensure your project meets all safety and code requirements.

Packaging and Shipping
Products are packaged using environmentally conscious, low-carbon materials in custom-made packaging designed to protect against transportation damage. We offer various shipping options including ground, air, and sea transportation, with our team working to determine the optimal solution for your specific needs
