ISO 9001 Aluminum Clip and 10 Year guarantee for Facade Support System

ISO 9001 aluminum clip

facade support system bracket

aluminum bracket with warranty

Place of Origin:

China

Brand Name:

Jingliang

Certification:

ISO

Model Number:

JL-T-3018

Request A Quote

ISO 9001 Aluminum Clip and 10 Year guarantee for Facade Support System

Product Details

Material:

Aluminum 6063,6061.6005,Custimized

Surface:

Mill Finish, Anodizing, Coating

Model:

JL-T-3018

Application:

Terracotta Facade Support

Installation:

Easy

Warranty:

10 Years

Highlight:

ISO 9001 aluminum clip

facade support system bracket

aluminum bracket with warranty

Payment & Shipping Terms

Minimum Order Quantity

200 pcs

Price

Negotiable

Packaging Details

Cartons packaging

Delivery Time

15 working days

Payment Terms

L/C, T/T

Supply Ability

20000 per 15 working days

Energy Efficient and Anti Corrosion Aluminum Clip for Brick Facade Support System

Get Best Price

ISO 9001 Aluminum Clip and Earthquake Resistant for Facade Support System

Get Best Price

Energy Efficient and Anti Corrosion Facade Joint for Facade Support System

Get Best Price

Energy Efficient and Anti Corrosion Aluminum Cllip for Facade Support System

Get Best Price

+8618522900527

info@hbjllzp.com

Contact Now

Product Description

ISO 9001 Aluminum Clip with 10-Year Guarantee for Facade Support System

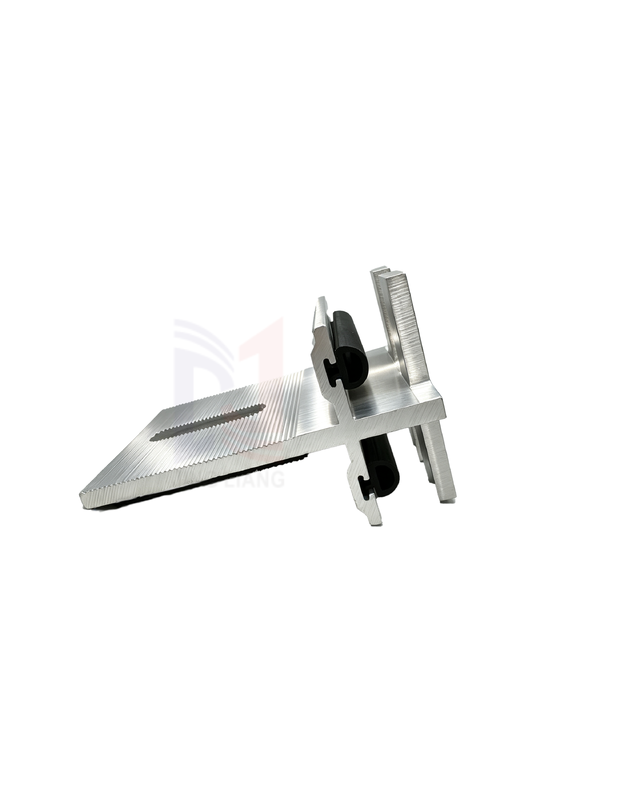

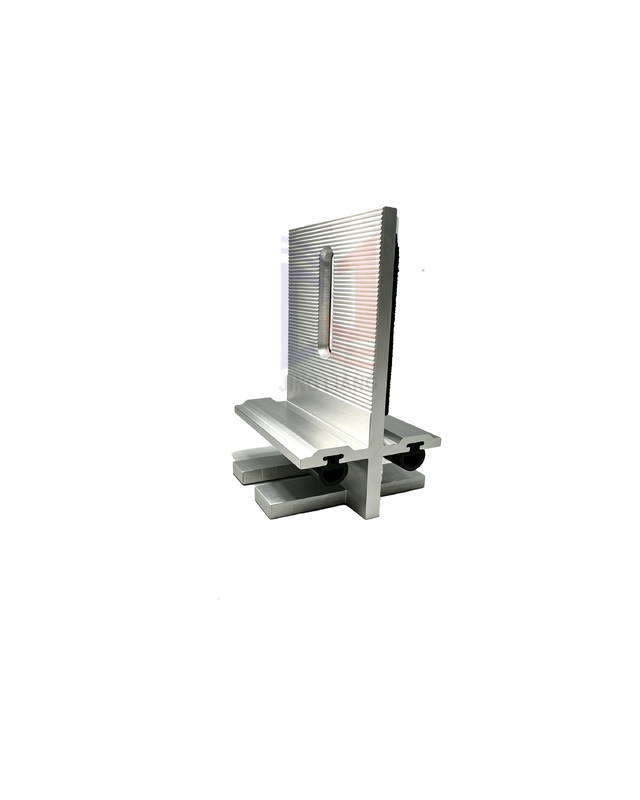

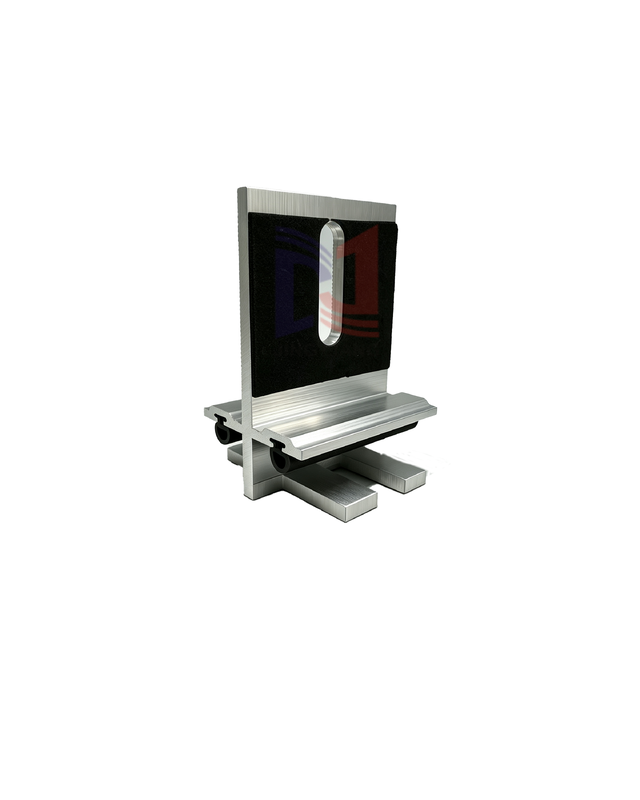

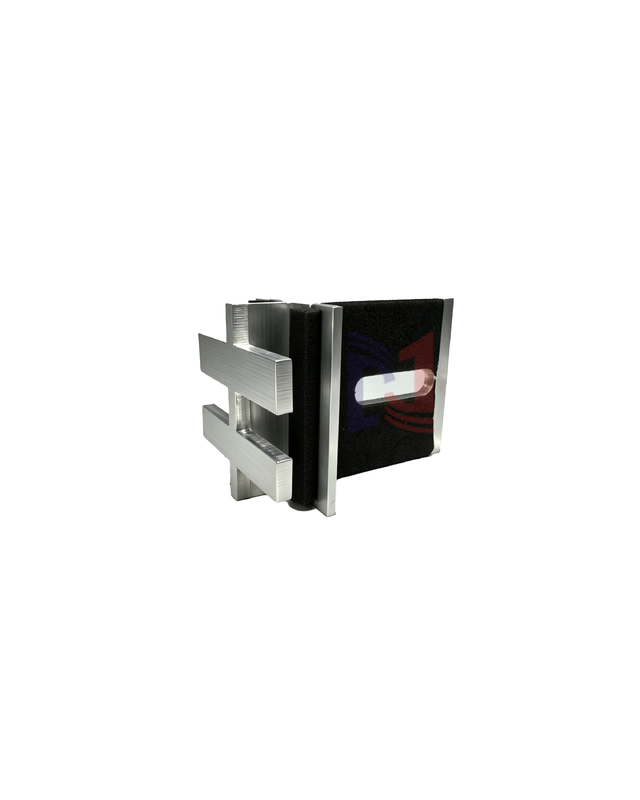

This T30-type aluminum alloy support clip is specifically designed for 30mm thick terracotta panel facade systems. As a core supporting connection component, it features a socket-type design that provides reliable structural support for terracotta facade installations.

Manufactured from 6063-T5/T6 aluminum alloy with anodization treatment, this clip offers high strength, lightweight construction, and excellent corrosion resistance, making it ideal for long-term outdoor applications.

Key Features

High Adaptability: Specifically engineered for 30mm thick terracotta panels with top-and-bottom plug-in snap-fit structure that locks directly into pre-drilled panel slots, eliminating drilling requirements and preventing panel damage
Adjustable Design: Base features elongated adjustment holes for fine horizontal and vertical tuning during installation to compensate for structural errors and ensure facade flatness
Anti-Slip Structure: Base plate includes fine anti-slip teeth to maintain stability and prevent sliding after installation, enhancing overall structural integrity
Safety and Durability: Aluminum alloy construction provides weather resistance and rust-free performance; EPDM rubber components resist aging and withstand extreme temperatures with excellent seismic performance
Ventilation Performance: Support system incorporates inherent air gap design to meet ventilation, heat dissipation, and moisture resistance requirements for ceramic panel curtain walls

Applications

Building Exterior Wall Ceramic Panel Curtain Wall: Suitable for public buildings including office buildings, commercial complexes, exhibition centers, hospitals, and schools using 30mm thick ceramic panels for exterior facades
Interior Decoration Curtain Wall: Ideal for large venue interior walls and lobby decorative ceramic panel installations
Geographic Compatibility: Suitable for building facades in various climate zones including coastal high salt spray areas, northern freeze-thaw regions, and southern humid and hot environments

Technical Support and Services

Our cladding support systems include comprehensive technical support and services to ensure proper installation and long-term performance. Our expert team provides assistance with design, product selection, and installation details to ensure your project meets all safety and code requirements.

Packaging and Shipping

Products are packaged using environmentally conscious, low-carbon materials in custom-made packaging designed to protect against transportation damage. We offer various shipping options including ground, air, and sea transportation, with our team working to determine the optimal solution for your specific needs.
