Energy Efficient and Anti Corrosion Aluminum Cllip for Facade Support System

Energy Efficient and Anti Corrosion Aluminum Cllip for Facade Support System

energy efficient aluminum clip

anti corrosion facade clip

aluminum facade support bracket

Place of Origin:

China

Brand Name:

Jingliang

Certification:

ISO

Model Number:

JZ-S-1050

Contact Us
Request A Quote
Energy Efficient and Anti Corrosion Aluminum Cllip for Facade Support System Energy Efficient and Anti Corrosion Aluminum Cllip for Facade Support System Energy Efficient and Anti Corrosion Aluminum Cllip for Facade Support System Energy Efficient and Anti Corrosion Aluminum Cllip for Facade Support System
Product Details
Material:
Aluminum 6063,6061.6005,Custimized
Surface:
Mill Finish, Anodizing, Coating
Model:
JZ-S-1050
Application:
Exterior Wall Decoration
Installation:
Easy
Warranty:
10 Years
Highlight:

energy efficient aluminum clip

,

anti corrosion facade clip

,

aluminum facade support bracket

Payment & Shipping Terms
Minimum Order Quantity
200 pcs
Price
Negotiable
Packaging Details
Cartons packaging
Delivery Time
15 working days
Payment Terms
L/C, T/T
Supply Ability
20000 per 15 working days
RELATED PRODUCTS
Good price Factory Supply and Competitive Price Aluninum Clip for Facade Support System online

Factory Supply and Competitive Price Aluninum Clip for Facade Support System

Get Best Price
Good price Anti-corrosion and Easy Installation Alumium Bracket for Facade Support Systm online

Anti-corrosion and Easy Installation Alumium Bracket for Facade Support Systm

Get Best Price
Good price Factory supply and Easy Installation Alumium Clip for Facade Support Systm online

Factory supply and Easy Installation Alumium Clip for Facade Support Systm

Get Best Price
Good price Factory supply and Competitive Price for Facade Joint for Stone Facade Support System online

Factory supply and Competitive Price for Facade Joint for Stone Facade Support System

Get Best Price
Contact Us
+8618522900527
info@hbjllzp.com
Contact Now
Product Description

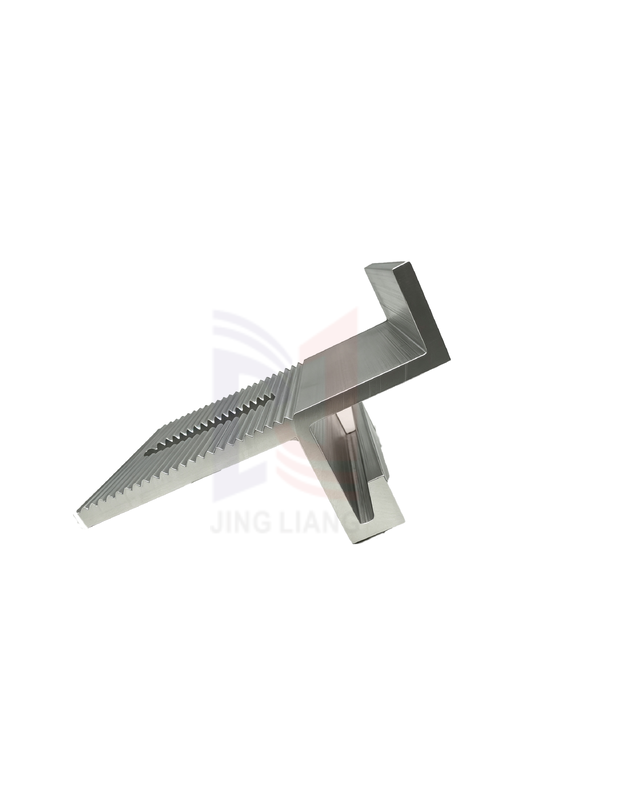

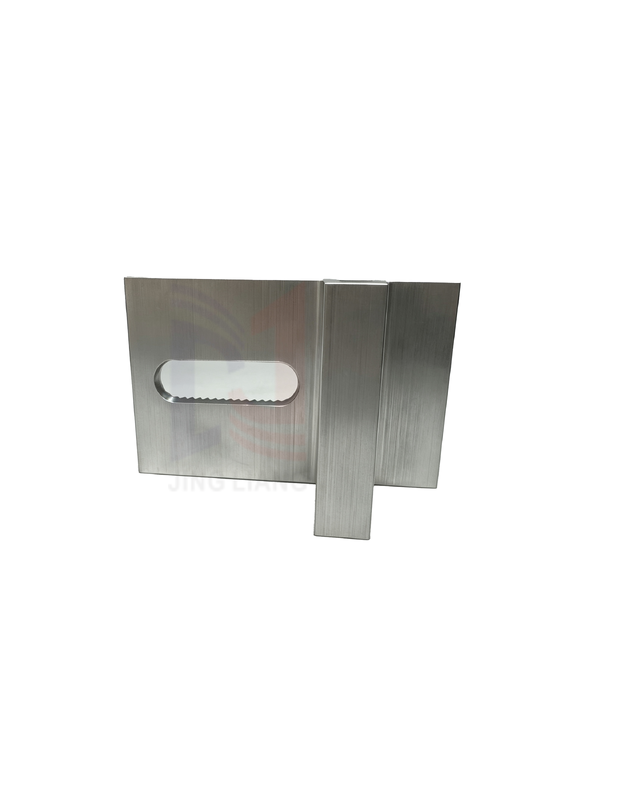

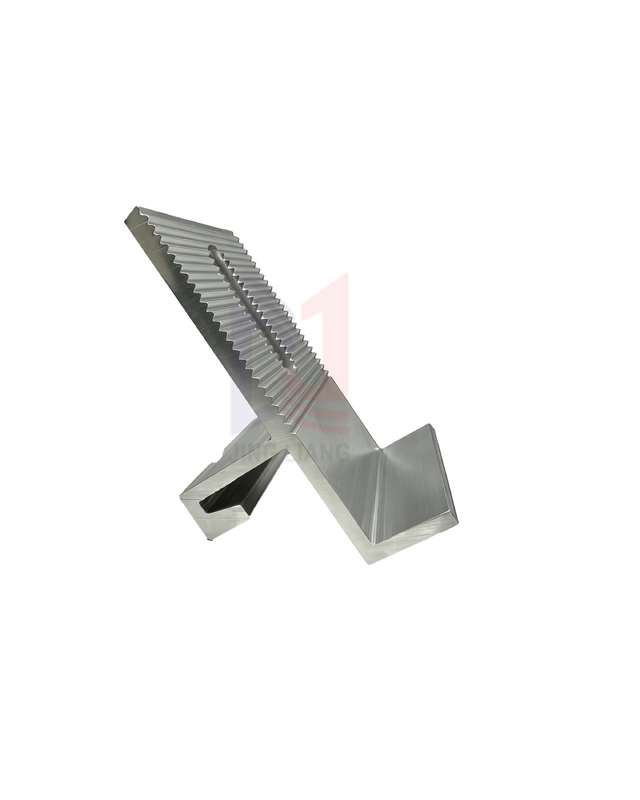

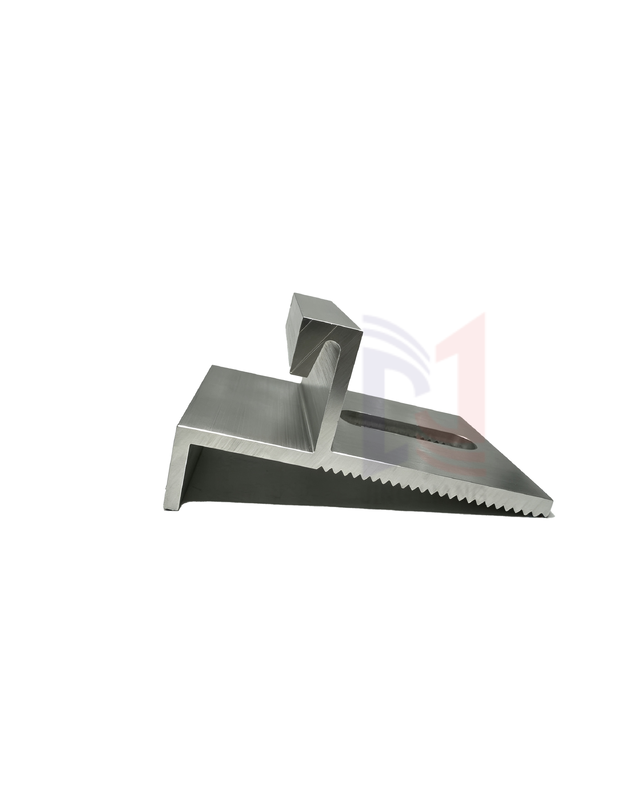

Energy Efficient and Anti Corrosion Aluminum Clip for Facade Support System
This JZ-S-1050 aluminum clip is specially engineered for stone facade applications. Manufactured from 6063-T5/6063-T6 extruded aluminum alloy, it features lightweight construction with anodized or fluorocarbon surface treatment for enhanced corrosion resistance in coastal high salt spray environments.
Aluminum facade support clip for stone curtain wall systems
Product Features
  • Lightweight Construction: Density approximately one-third of stainless steel, reducing overall curtain wall load and rail stress
  • Superior Weather Resistance: Anodized/fluorocarbon treatment prevents corrosion and eliminates rust stains on stone surfaces
  • Multidimensional Adjustment: Elongated holes enable three-dimensional positioning (up/down, left/right, in/out) to accommodate construction tolerances
  • Anti-Slip Tooth Structure: Serrated biting surface prevents panel slippage caused by wind pressure and thermal expansion
  • Independent Maintenance: Both SE split and back bolt systems allow individual stone replacement without disturbing adjacent panels
Applications
  • Large Public Buildings: High-speed railway stations, exhibition centers, museums, theaters, and large grid granite curtain walls
  • Commercial Structures: Office complexes, hotels, and commercial buildings requiring clean facades with maintenance accessibility
  • Interior Applications: Lobby background walls, exhibition hall walls, and large stone dry hanging installations
Technical Support and Services
Our cladding support systems include comprehensive technical support and services to ensure proper installation and long-term performance. Our expert team provides assistance with design, product selection, and installation details to ensure your project meets all safety and code requirements.
Packaging and Shipping
Products are packaged using environmentally conscious, low-carbon materials in custom-made packaging designed to protect against transportation damage. We offer various shipping options including ground, air, and sea transportation, with our team working to determine the optimal solution for your specific needs.
