Anti-corrosion and Easy Installation Aluminum Bracket for Facade Support System

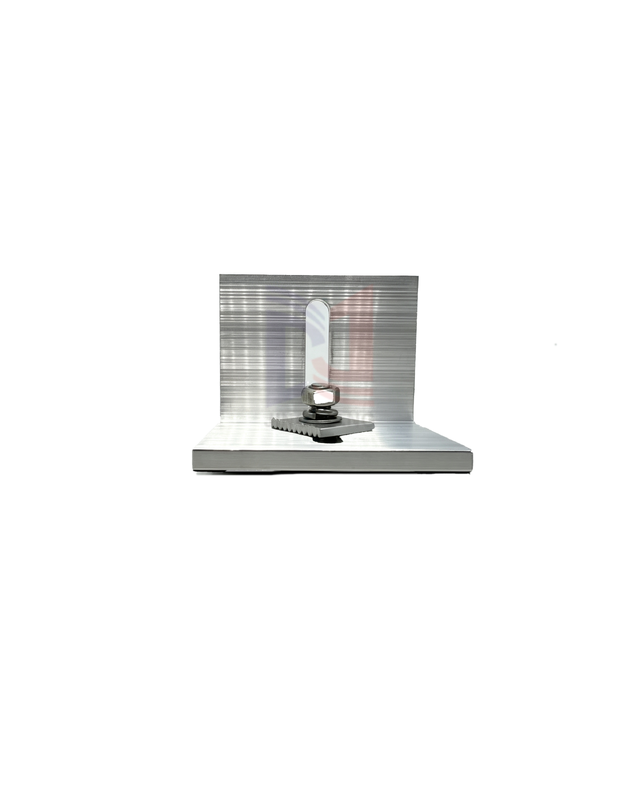

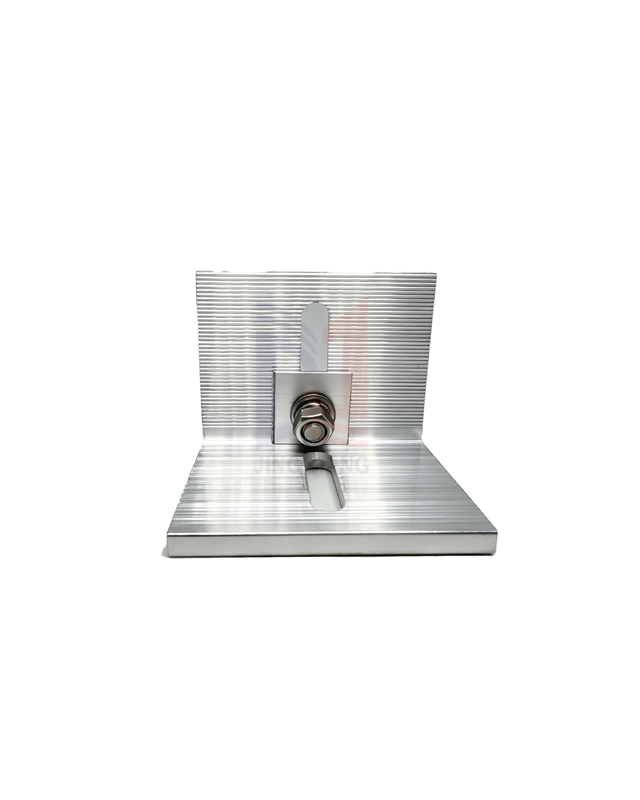

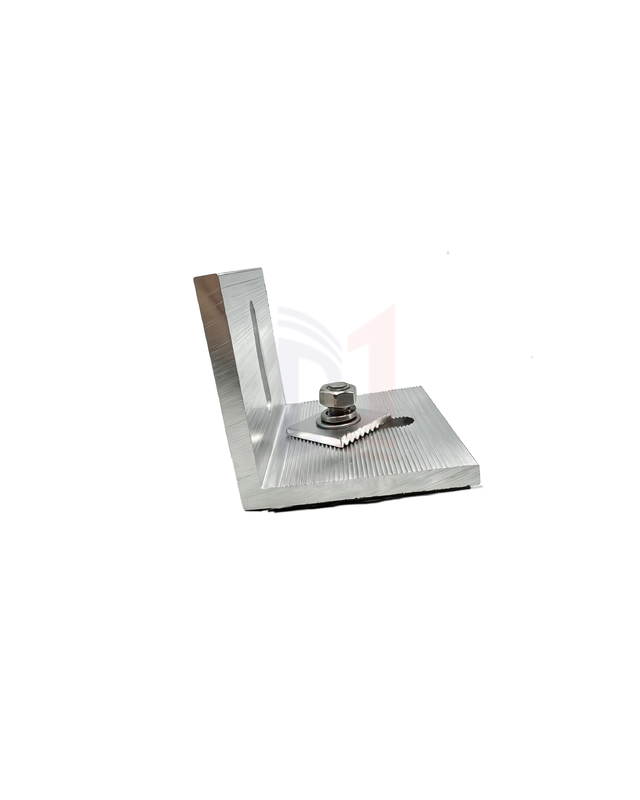

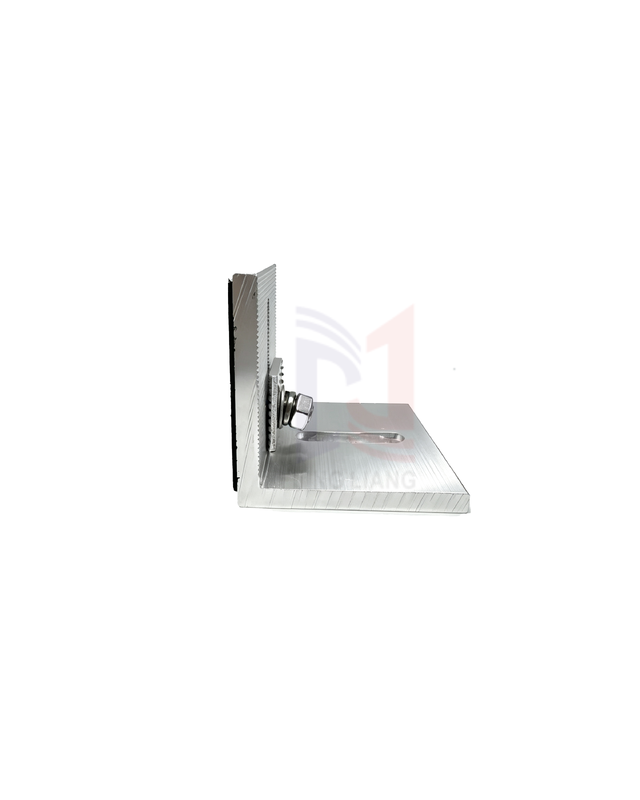

The L-shaped corner bracket serves as the core connecting component of aluminum support systems, featuring a right-angled design with dimensions of 50mm×60mm. This versatile bracket is engineered for fixing ventilation facades, aluminum panel curtain walls, stone curtain walls, and metal plate curtain wall panels.
Manufactured from high-grade 6063-T5/6063-T6 aluminum alloy extruded profiles, these brackets offer exceptional strength and corrosion resistance, making them ideal for demanding overseas projects and harsh environmental conditions.
Product Features
Specification Structure
L-shaped right angle adapter with wing dimensions of 50mm × 60mm. The profile is extruded as a single piece and can be processed with oval adjustment holes to achieve horizontal and vertical bi-directional adjustment, accommodating construction errors and temperature deformation.
Material Performance
Constructed from 6063-T5/6063-T6 aluminum alloy, providing lightweight yet robust performance that meets curtain wall stress requirements. Resistant to atmospheric corrosion, ensuring long-term outdoor use without rust water pollution to panels.
Surface Treatment
Standard natural anodizing with optional powder coating and fluorocarbon coating available to meet anti-corrosion requirements for coastal high salt spray environments.
Thickness Selection
Available in conventional thicknesses: 4mm, 5mm, and 6mm, selected according to grid size and wind load requirements.
Installation Advantages
Functions as a flexible adapter component that avoids concentration of hard contact stress. Equipped with stainless steel fasteners and nylon locking nuts to effectively prevent vibration loosening.
Applications
- Ventilation rain curtain wall systems
- Aluminum panel curtain walls, stone curtain walls, glass curtain walls
- Horizontal secondary keel fixation and component transfer at corner positions
- Architectural balcony railings, decorative grilles, and aluminum veneer closure structures
Technical Support and Services
Our Cladding Support Systems include comprehensive technical support and services to ensure proper installation and long-term performance. Our expert team provides assistance with design, product selection, and installation details to ensure your project meets all safety and code requirements.
Packaging and Shipping
Products are packaged using environmentally conscious, low-carbon materials in custom-made packaging designed to protect against transportation damage. We offer various shipping options including ground, air, and sea transportation, with our team working to determine the optimal solution for your specific needs.
