Name: Factory supply and Competitive Price for Facade Joint for Stone Facade Support System
Brand: Hebei Jingliang Aluminum Alloy Products Co., Ltd
SKU: JZ-S-1041+JZ-T-J013
Availability: InStock

Home > Products > Cladding Support System >

Factory supply and Competitive Price for Facade Joint for Stone Facade Support System

facade joint for stone facade

competitive price facade joint

stone facade support system

Place of Origin:

China

Brand Name:

Jingliang

Certification:

ISO

Model Number:

JZ-S-1041+JZ-T-J013

Request A Quote

Factory supply and Competitive Price for Facade Joint for Stone Facade Support System

Product Details

Material:

Aluminum 6063,6061.6005,Custimized

Surface:

Mill Finish, Anodizing, Coating

Model:

JZ-S-1041+JZ-T-J013

Application:

Stone Facade Support

Installation:

Easy

Warranty:

10 Years

Highlight:

facade joint for stone facade

competitive price facade joint

stone facade support system

Payment & Shipping Terms

Minimum Order Quantity

200 pcs

Price

Negotiable

Packaging Details

Cartons packaging

Delivery Time

15 working days

Payment Terms

L/C, T/T

Supply Ability

20000 per 15 working days

Factory supply and Easy Installation Alumium Clip for Facade Support Systm

Get Best Price

Factory supply and Competitive Price for Facade Joint for Stone Facade Support System

Get Best Price

Energy Efficient and Anti Corrosion Facade Joint for Facade Support System

Get Best Price

Factory Supply and Competitive Price Steel Embeded Part for Facade Support System

Get Best Price

+8618522900527

info@hbjllzp.com

Contact Now

Product Description

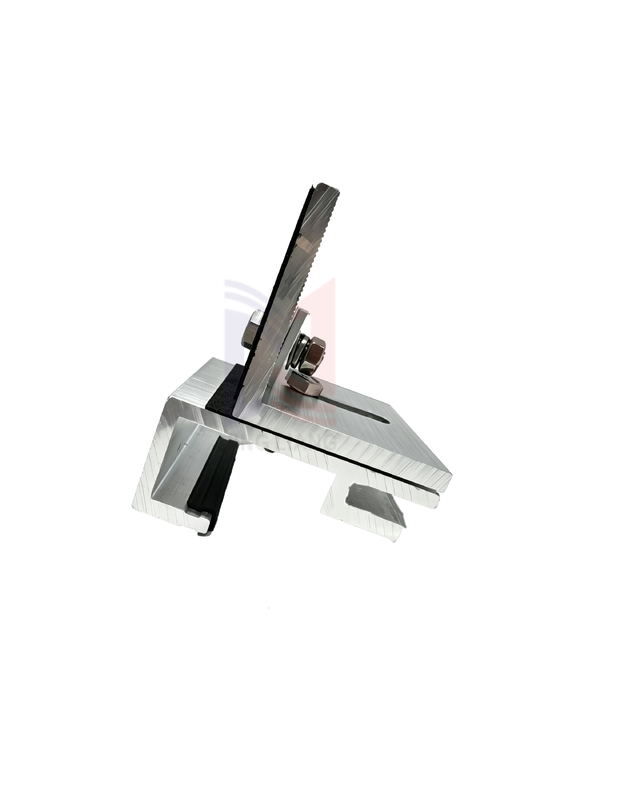

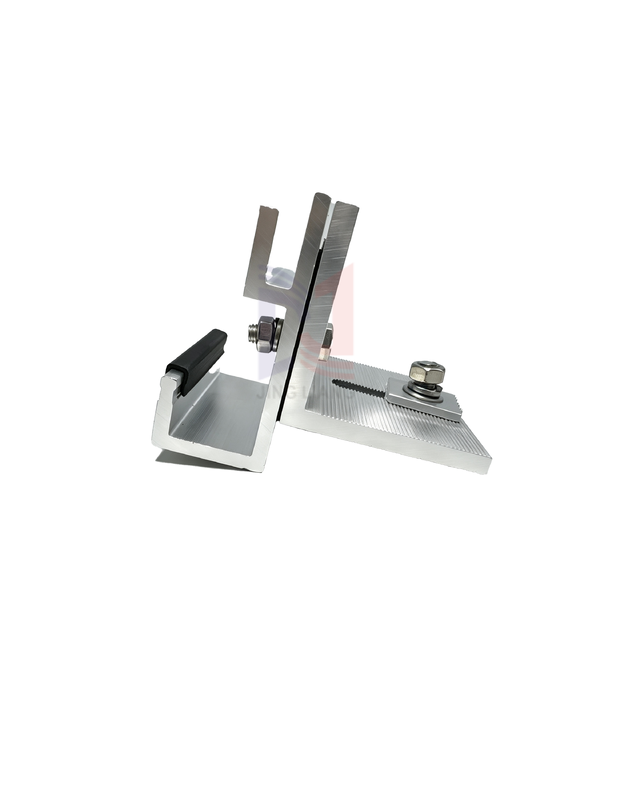

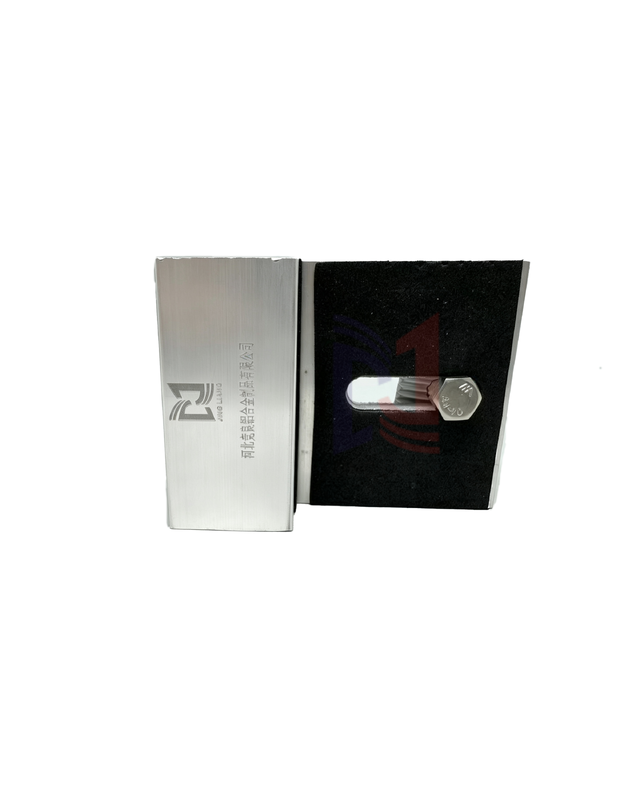

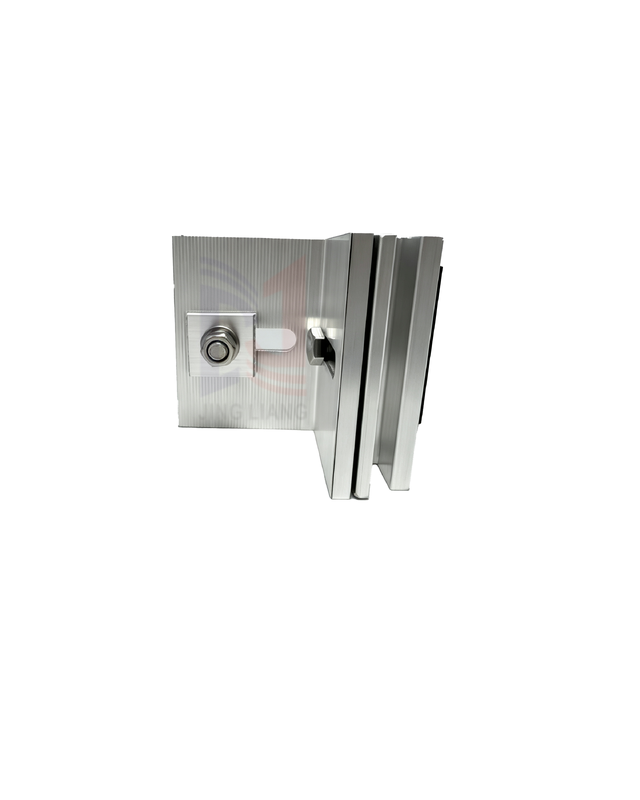

Adjustable Aluminum Facade Joint for Stone Support Systems

This adjustable aluminum alloy facade support joint is specifically designed for ventilation stone curtain walls. The system consists of a load-bearing bracket with EPDM rubber strip, adjustable side pressure limit piece, and stainless steel fastening bolt assembly.

Key Features

Three-Dimensional Adjustable Construction: Elongated hole groove structure allows fine-tuning in all directions, improving installation fault tolerance
Rational Force Distribution: Lower support bears weight while upper plate provides lateral limit, preventing stone cracking from improper stress
Premium Materials: 6063-T5/T6 aluminum alloy with natural anodizing, EPDM weather-resistant rubber, and A2/A4 stainless steel fasteners
Ventilated Curtain Wall Compatibility: Components maintain ventilation cavity for proper rainscreen facade system function
Noise Reduction: Rubber buffer strips eliminate wind vibration, abnormal noise, and isolate hard contacts

Applications

Natural granite, marble, and sintered rock panel curtain walls
Open ventilation stone rain curtain exterior walls
Dry hanging of large ceramic sheet exterior walls

Technical Specifications

Main Material	Aluminum 6063-T5 / 6063-T6
Surface Treatment	Natural Anodized
Rubber Component	EPDM Weather Resistant Rubber
Fasteners	A2/A4 Stainless Steel
System Type	Ventilated Rainscreen Facade

Technical Support & Services

Our cladding support systems include comprehensive technical support for design, product selection, and installation. Our expert team ensures your project meets all safety and code requirements.

Packaging & Shipping

Products are packaged in environmentally conscious, custom-made materials to prevent transportation damage. We offer ground, air, and sea shipping options with reliable carriers to meet your project timelines.

Tags：

ISO Facade Joint

Rubber Sealing Strip Facade Joint
