ISO 9001 and 10 Year guarantee Insert for Facade Support System

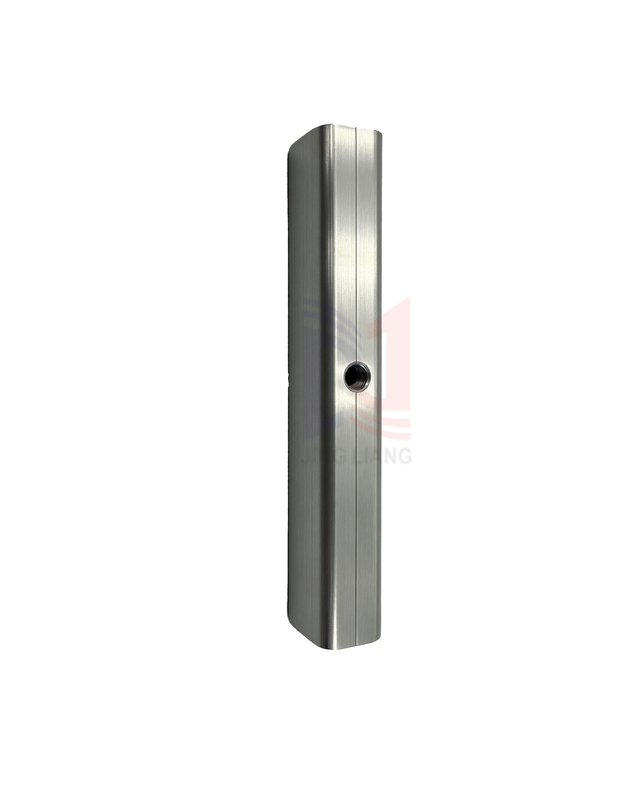

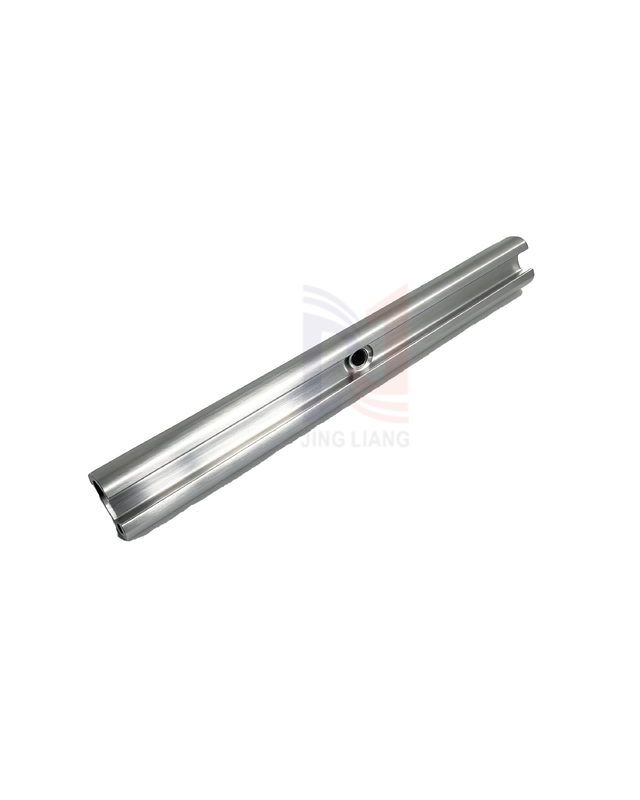

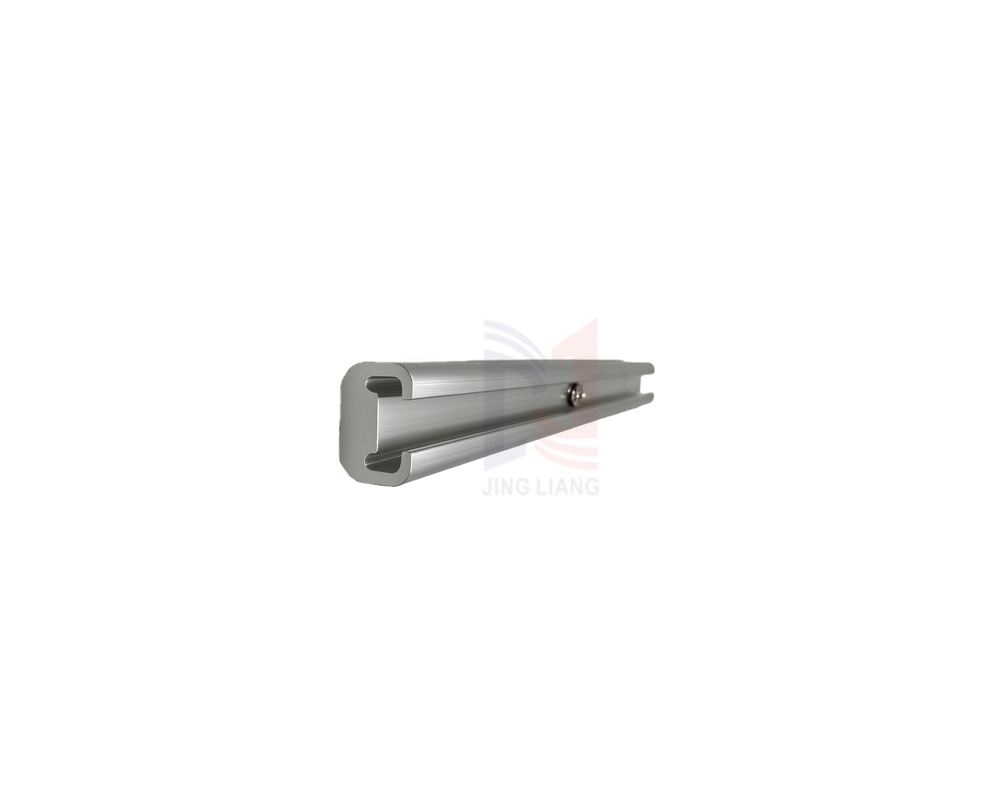

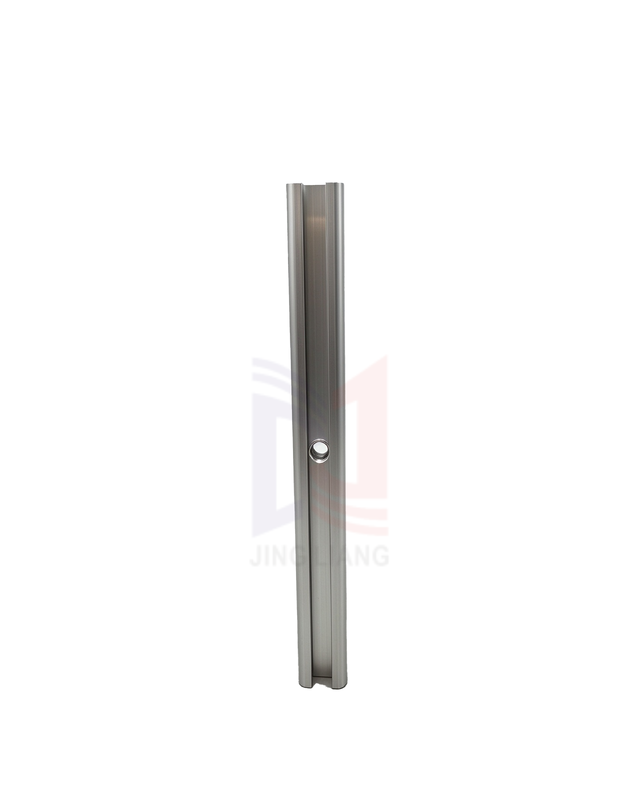

This insert is a core component of facade support systems, formed through aluminum extrusion. Its groove cavity is engineered to accommodate hooks, bolts, washers, or embedded subframes, delivering reliable internal support for facade panels. The circular holes shown in the diagram are countersunk holes, allowing bolt heads to sit flush with the surface after assembly — preventing interference with panels and protecting the backplate from damage.

• Strengthening and Load Distribution: Designed for single-panel curtain walls such as stone, HPL, ceramic panels, and perforated aluminum panels. Embedding this inner aluminum strip compensates for the thin, brittle nature of the panels by dispersing the tension force of the single-point hanger across the entire profile — preventing panel cracking and stress concentration.
• Assembly Compatibility: T-shaped bolts and curtain wall hangers slide smoothly within the slot, forming an adjustable back-up connection system for precise alignment during installation.
• Lightweight Construction: Significantly lighter than solid steel linings, reducing the overall load on the keel while offering rust resistance and eliminating the need for hot-dip galvanization.
• Flexible Dimensions: Cross-section, wall thickness, and hole spacing are all custom-molded according to curtain wall detailed drawings.
• Durability: Anodized or fluorocarbon coating resists UV rays and acid rain, making it suitable for coastal high-corrosion exterior wall projects.

• Stone curtain walls, ceramic thin plate and ceramic panel curtain walls, HPL high-pressure laminated panels, fiber cement panels, and perforated aluminum single-panel backer reinforcement.
• Internal reinforcement of hidden and semi-hidden glass subframes, plus strengthening of rail panel liners.
• Open-style ventilated curtain wall back-hanging systems for overseas projects.

Our cladding support systems include comprehensive technical support and services to ensure proper installation and long-term performance. Our expert team provides assistance with design, product selection, and installation details to ensure your project meets all safety and code requirements.

Products are packaged using environmentally conscious, low-carbon materials in custom-made packaging designed to protect against transportation damage. We offer multiple shipping options — ground, air, and sea transportation — with our team working to determine the optimal solution for your specific needs.
