Product Description

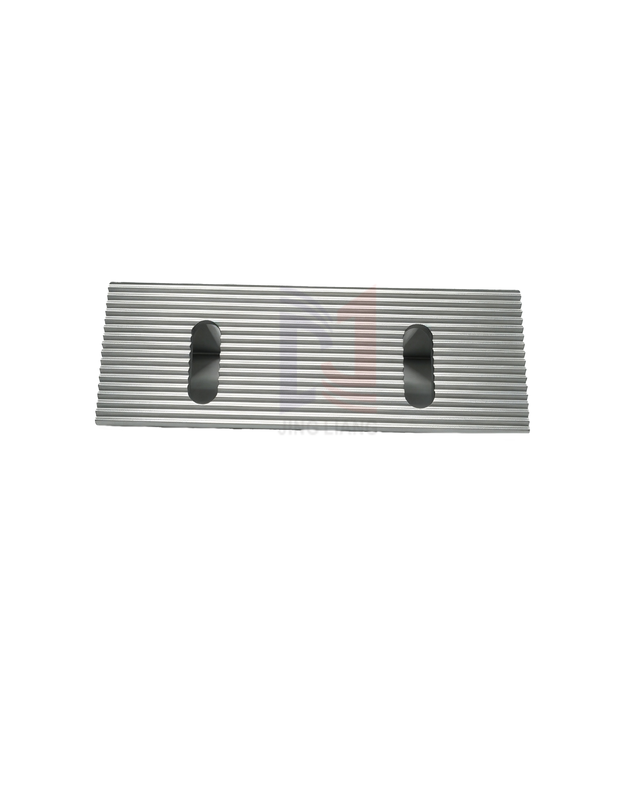

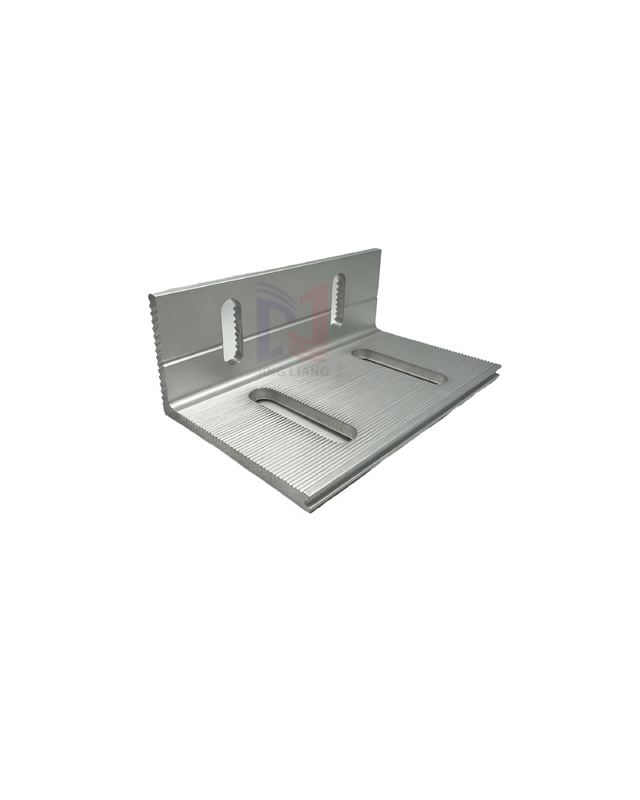

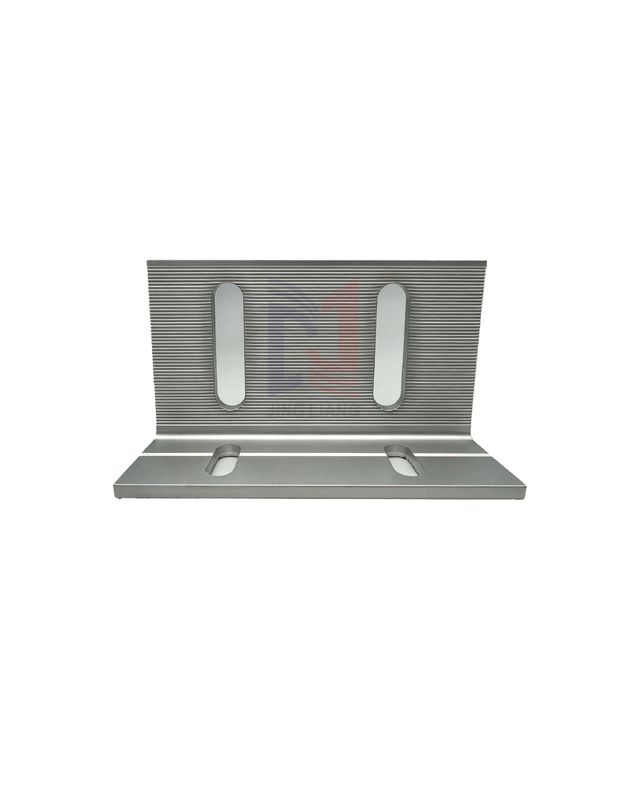

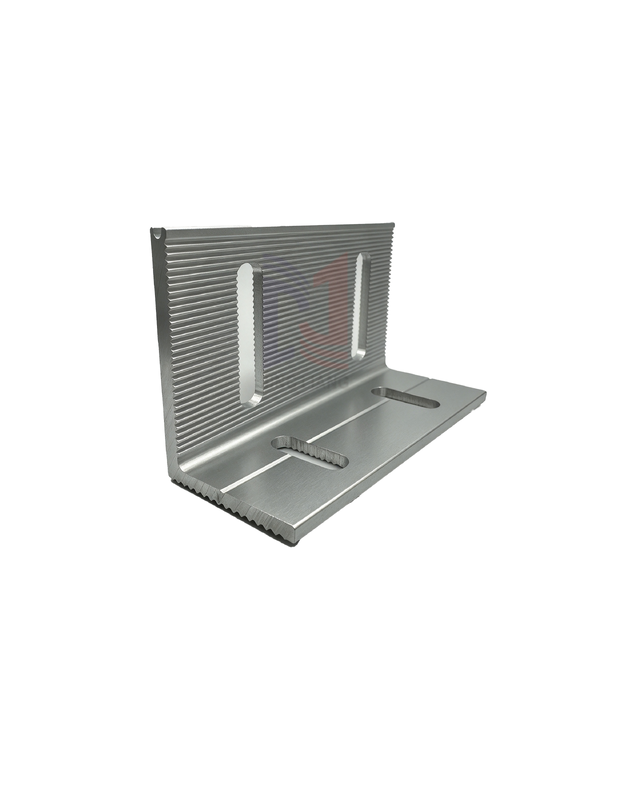

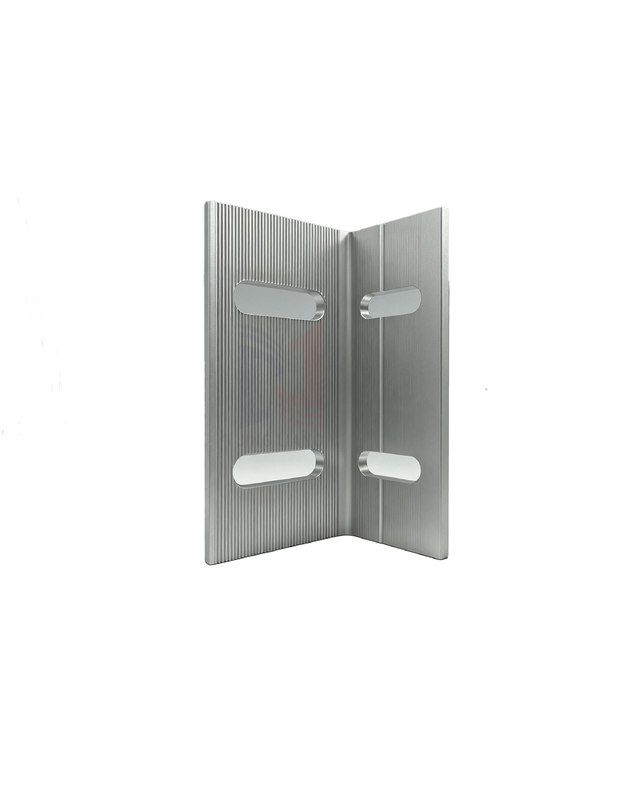

This is an L-shaped right-angle connecting bracket formed by extrusion. It is featured by a fine, anti-slip tooth pattern on the surface and elongated adjustment waist holes. The tooth pattern enhances friction to prevent slippage under load, while the elongated holes provide horizontal adjustment clearance to accommodate deviations in civil construction and profile installation.Fully formed without welding, this will eliminate welding stress and corrosion risks. It adopts 6063-T5 or 6063-T6 as its material,giving attention to strength, toughness, and processability and excellent resistance to atmospheric corrosion, which is suitable for long-term outdoor use on building exteriors, with surface treatments such as anodizing and powder coating.
Features
1. Anti slip tooth pattern design
The contact surface teeth are interlocked, effectively resisting shear force after locking the nut, reducing the risk of sliding between the corner bracket and the profile, improving the overall structural stability of the curtain wall, and adapting to external wall wind loads.
2.Advantages of 6063-T5 /T6 material
The material is lightweight and strong enough to meet the load of facade; Good weather resistance, the oxide film can resist rainwater and ultraviolet rays, and is not easy to rust; Moderate thermal conductivity, suitable for insulated facade systems; Easy to extrude and machine, supports customized sizes.
3.Integrated extrusion molding
It is made through whole extrusion molding without the risk of welding fracture; The surface is smooth and can be treated with anodizing, fluorocarbon spraying, and other surface treatments.
Application
1. Building curtain wall facade support system
Stone curtain wall, ceramic board, HPL/fiber cement board, ceramic board exterior wall dry hanging, used as the transition angle code between clip and rail.
2. Aluminum alloy doors and windows, modular curtain walls
Aluminum profile frame corner connection and sub frame fixation.
3. Integrated insulation and decoration board for exterior wall facade support
The back fixing adapter of the exterior wall insulation decorative panel.
4. Indoor large metal decorative wall panels
Installation and fixation of large indoor aluminum veneer and decorative panels
Technical Support and Services
Our cladding support systems include comprehensive technical support and services to ensure proper installation and long-term performance. Our expert team provides assistance with design, product selection, and installation details to ensure your project meets all safety and code requirements.
Packaging and Shipping
Products are packaged using environmentally conscious, low-carbon materials in custom-made packaging designed to protect against transportation damage. We offer various shipping options including ground, air, and sea transportation, with our team working to determine the optimal solution for your specific needs.
