Anti-corrosion and Easy Installation Alumium Rail for Facade Support Systm

Anti-corrosion and Easy Installation Alumium Rail for Facade Support Systm

aluminum rail for facade support

anti-corrosion aluminum rail

easy installation metal bracket

Place of Origin:

China

Brand Name:

Jingliang

Certification:

ISO

Model Number:

JL-T-X067

Contact Us
Request A Quote
Anti-corrosion and Easy Installation Alumium Rail for Facade Support Systm Anti-corrosion and Easy Installation Alumium Rail for Facade Support Systm Anti-corrosion and Easy Installation Alumium Rail for Facade Support Systm Anti-corrosion and Easy Installation Alumium Rail for Facade Support Systm
Product Details
Material:
Aluminum 6063,6061.6005,Custimized
Surface:
Mill Finish, Anodizing, Coating
Model:
JL-T-X067
Applicaiton:
Terracotta Facade Support
Installation:
Easy
Warranty:
10 Years
Highlight:

aluminum rail for facade support

,

anti-corrosion aluminum rail

,

easy installation metal bracket

Payment & Shipping Terms
Minimum Order Quantity
200 pcs
Price
Negotiable
Packaging Details
Cartons packaging
Delivery Time
15 working days
Payment Terms
L/C, T/T
Supply Ability
20000 per 15 working days
RELATED PRODUCTS
Good price Factory supply and Easy Installation Alumium Clip for Facade Support Systm online

Factory supply and Easy Installation Alumium Clip for Facade Support Systm

Get Best Price
Good price Factory Provide and Competitive Price Aluminum Clip for Facade Support System online

Factory Provide and Competitive Price Aluminum Clip for Facade Support System

Get Best Price
Good price ISO 9001 Aluminum Clip and 10 Year guarantee for Facade Support System online

ISO 9001 Aluminum Clip and 10 Year guarantee for Facade Support System

Get Best Price
Good price Energy Efficient and Anti Corrosion Aluminum Bracket for Facade Support System online

Energy Efficient and Anti Corrosion Aluminum Bracket for Facade Support System

Get Best Price
Contact Us
+8618522900527
info@hbjllzp.com
Contact Now
Product Description

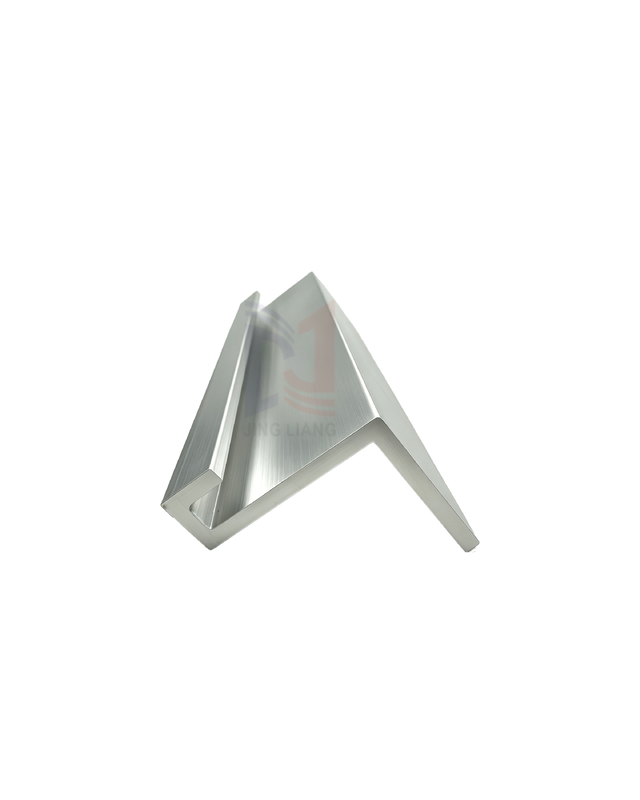

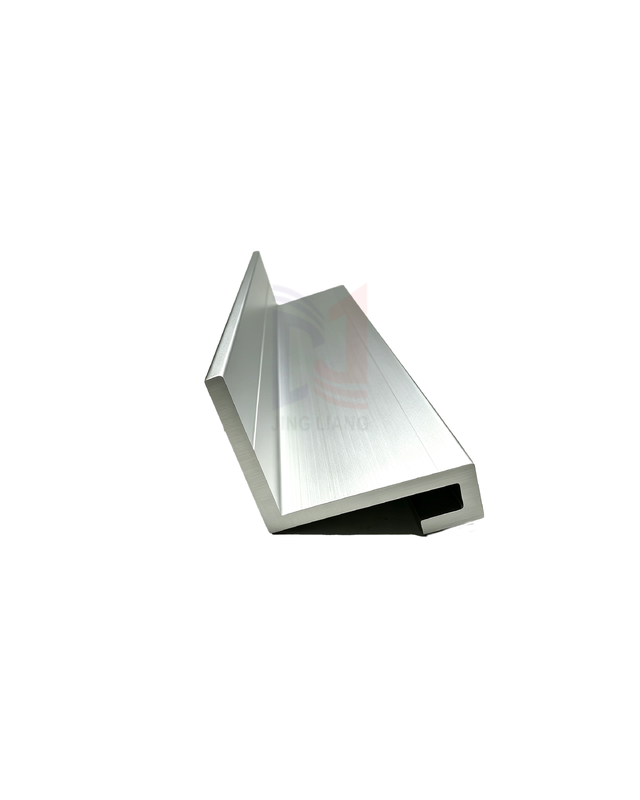

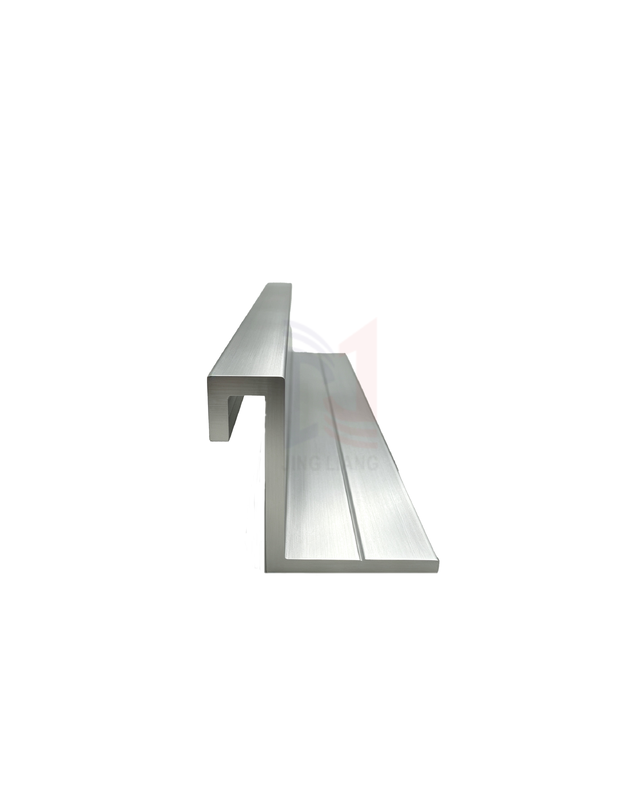

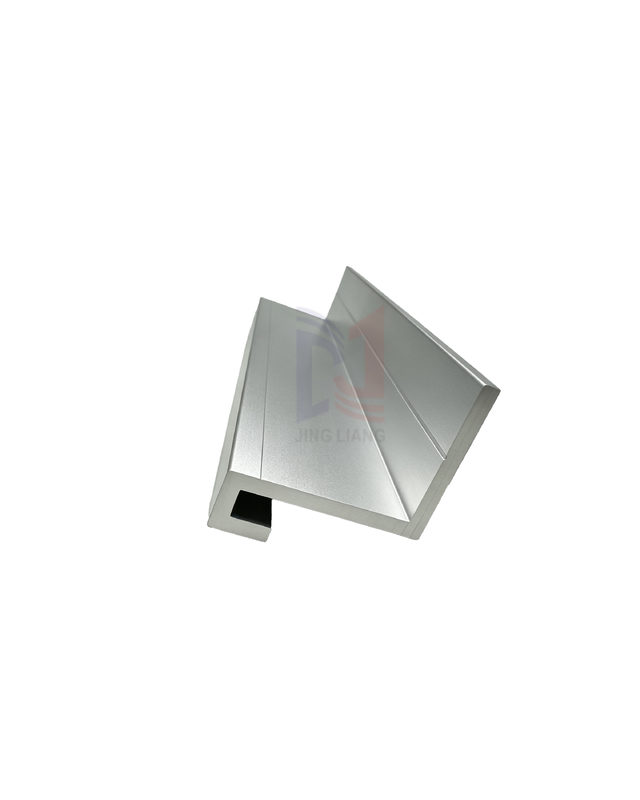

Anti-corrosion and Easy Installation Aluminum Rail for Facade Support System
The special aluminum rail for ceramic brick facade is a horizontal load-bearing component of ventilated ceramic brick facade systems. It is designed to support ceramic tiles or ceramic bricks and is fixed to the vertical main rail. The material used is 6063-T5/6063-T6 architectural extruded aluminum alloy, which is a standard grade in the curtain wall industry.
Standard surface treatment includes anodizing (original color brushed finish), with powder coating and PVDF coating also available. The anodized film enhances salt spray corrosion resistance for improved durability.
Aluminum rail for ceramic brick facade support system
Key Features
  • Lightweight and High Strength: Aluminum alloy density of 2.7g/cm³ significantly reduces building load compared to steel frames; extruded shape provides excellent bending resistance to meet wind load and self-weight requirements.
  • Corrosion Resistance and Anti-Aging: Anodized/painted surface prevents rust in outdoor environments, suitable for coastal areas with high salt spray exposure.
  • Precise Extrusion Forming: Integrated extrusion manufacturing ensures high precision of slot and bending dimensions, perfectly matching ceramic board hangers; built-in slots facilitate easy hanger positioning and installation.
  • Ventilation Curtain Wall Adaptation: When paired with vertical framing, creates a ventilation cavity between wall panels and structure, facilitating drainage, heat dissipation, and reducing condensation to protect the main structure.
  • Construction and Maintenance Advantages: Long materials cut to fixed lengths for on-site assembly; dry hanging construction eliminates wet work; individual ceramic boards can be independently disassembled and replaced for convenient maintenance.
Applications
Exterior Ceramic Tile (Ceramic Brick) Panels: Primarily used for office buildings, commercial complexes, hotels, and hospital facades.
Large-sized Ceramic Sheets, HPL Panels, Fiber Cement Panels: Compatible with various external cladding materials for ventilation facades.
Large-scale Interior Decorative Walls: Suitable for ceramic tile installations in lobbies and exhibition halls.
Technical Support and Services
Our cladding support systems include comprehensive technical support and services to ensure proper installation and long-term performance. Our expert team provides assistance with design, product selection, and installation details to ensure your project meets all safety and code requirements.
Packaging and Shipping
Products are packaged using environmentally conscious, low-carbon materials in custom-made packaging designed to protect against transportation damage. We offer various shipping options including ground, air, and sea transportation, with our team working to determine the optimal solution for your specific needs.
