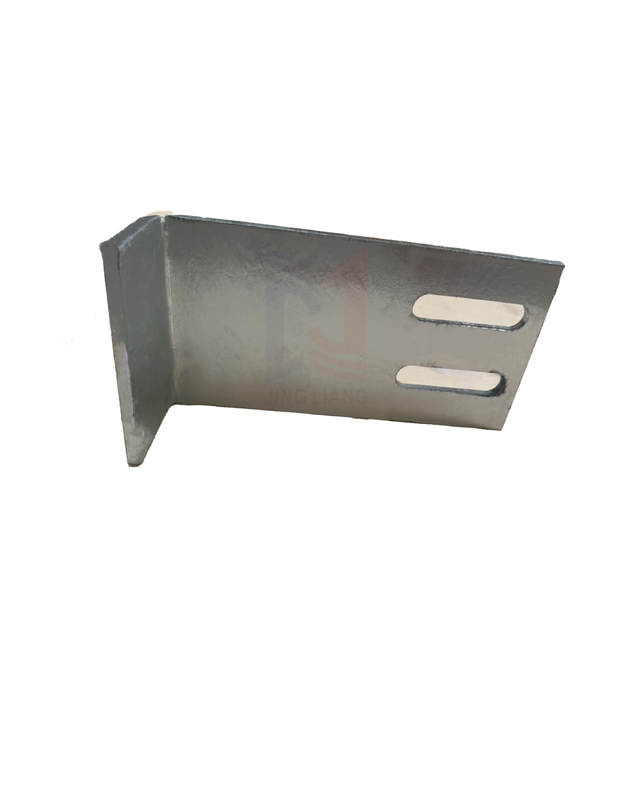

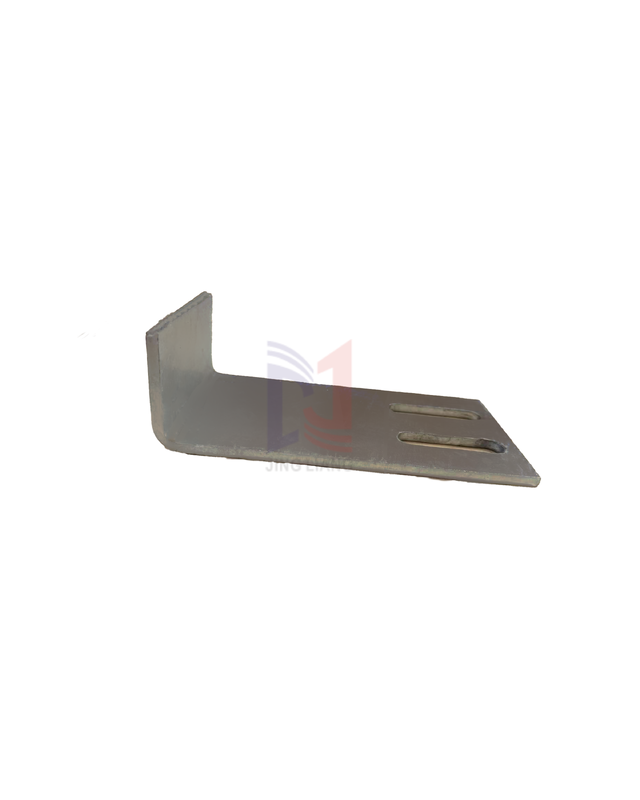

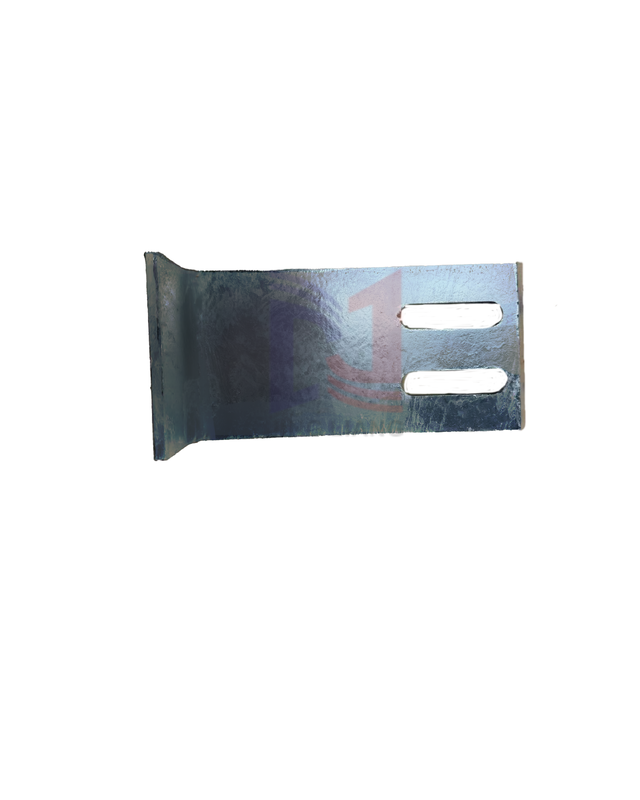

Easy-installation Galvanized Extended Support Base for Facade Support System
The curtain wall steel support base is a critical load-bearing transfer component installed at the bottom of vertical steel mullions in facade systems. It connects the main building structure with facade steel columns, providing secure mounting on concrete floors or structural beams.
Standard construction utilizes Q235B steel, while 304/316 stainless steel support bases are recommended for coastal and high-corrosion environments to ensure long-term durability.
Key Features
- Advanced anti-corrosion isolation protection
- Secure bolt anti-loosening mechanisms
- Standardized adjustment capabilities
Application Types
U-Shaped Groove Welding Support Base
Market mainstream design featuring bottom plate with double vertical plate welding. Column embeds in U-groove with lateral bolt clamping. Ideal for floor-standing curtain wall steel square tube columns, first floor curtain walls, and steel structure frame facades. Provides X and Y axis horizontal adjustment.
Single Plate L-Shaped Steel Support Base
Simple right-angle steel structure support suitable for minor keels with low loads, horizontal steel supports, and small canopy facades.
Adjustable Screw Type Steel Support Base
Heavy-duty design with integrated adjustment screw rod on bottom plate. Eliminates need for cushion plate stacking while providing precise elevation adjustment. Perfect for unit type facade bottom supports and large-span skylight roofs.
Pre-Embedded Steel Boots
Pre-embedded column base system with concrete pouring during construction phase. Recommended for suspended steel structure curtain walls and heavy-duty external stone facades.
Technical Support & Services
Our comprehensive cladding support systems include expert technical support and services to ensure proper installation and long-term performance. Our specialized team provides assistance with design consultation, product selection, and installation details to meet all safety standards and code requirements.
Packaging & Shipping
Products are carefully packaged in custom-made, environmentally conscious materials designed to prevent damage during transit. We partner with reliable shipping companies and offer multiple transportation options including ground, air, and sea freight to accommodate your specific project timeline and requirements.
