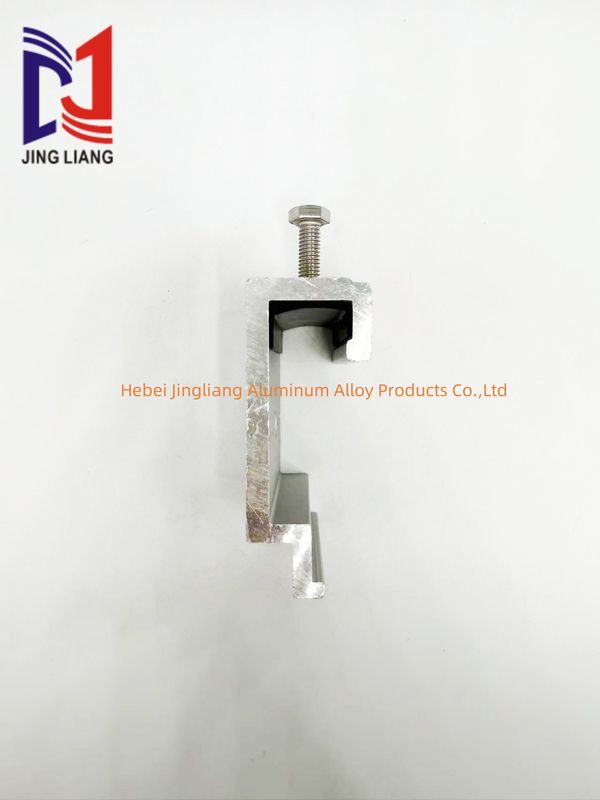

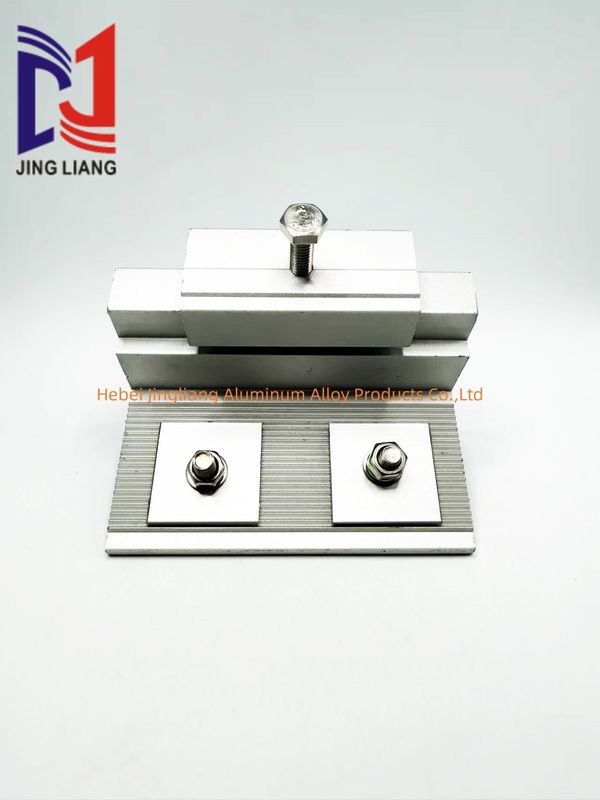

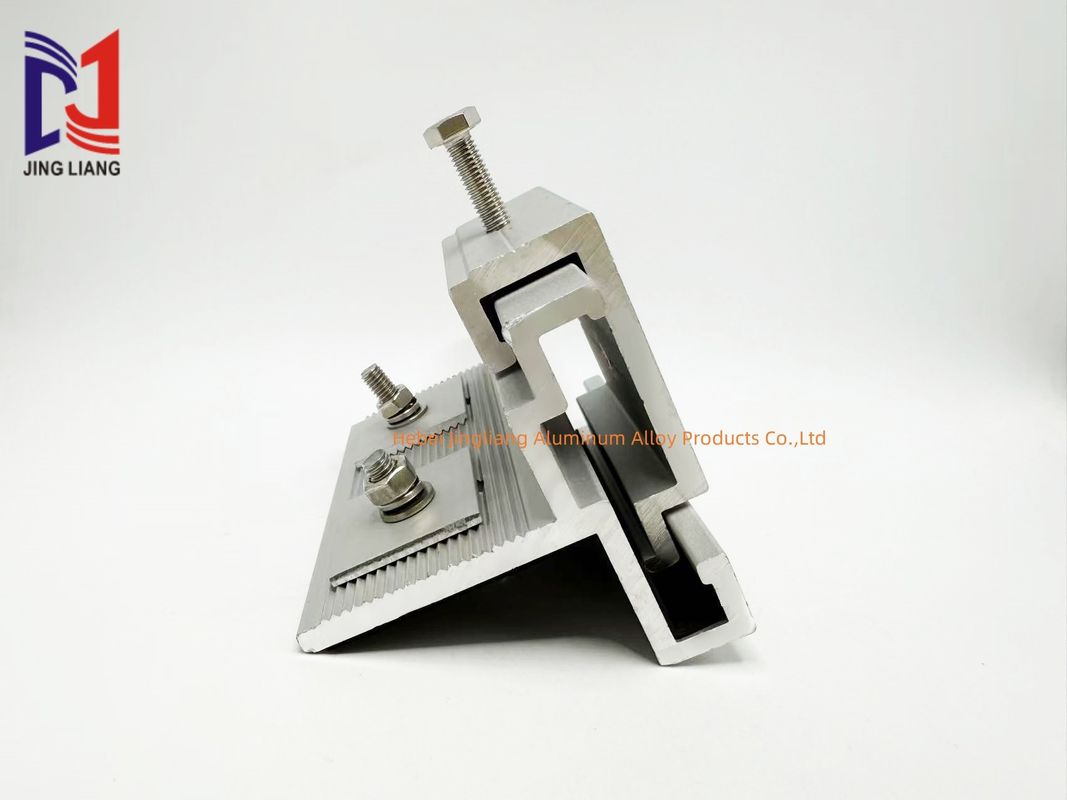

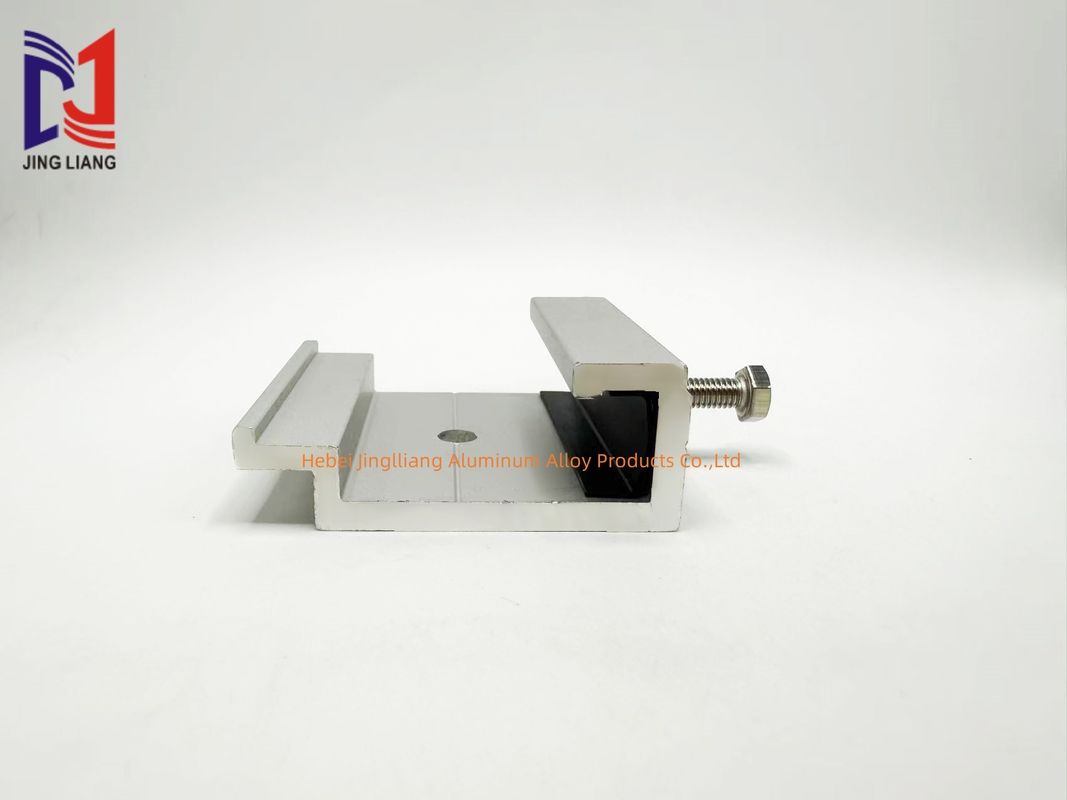

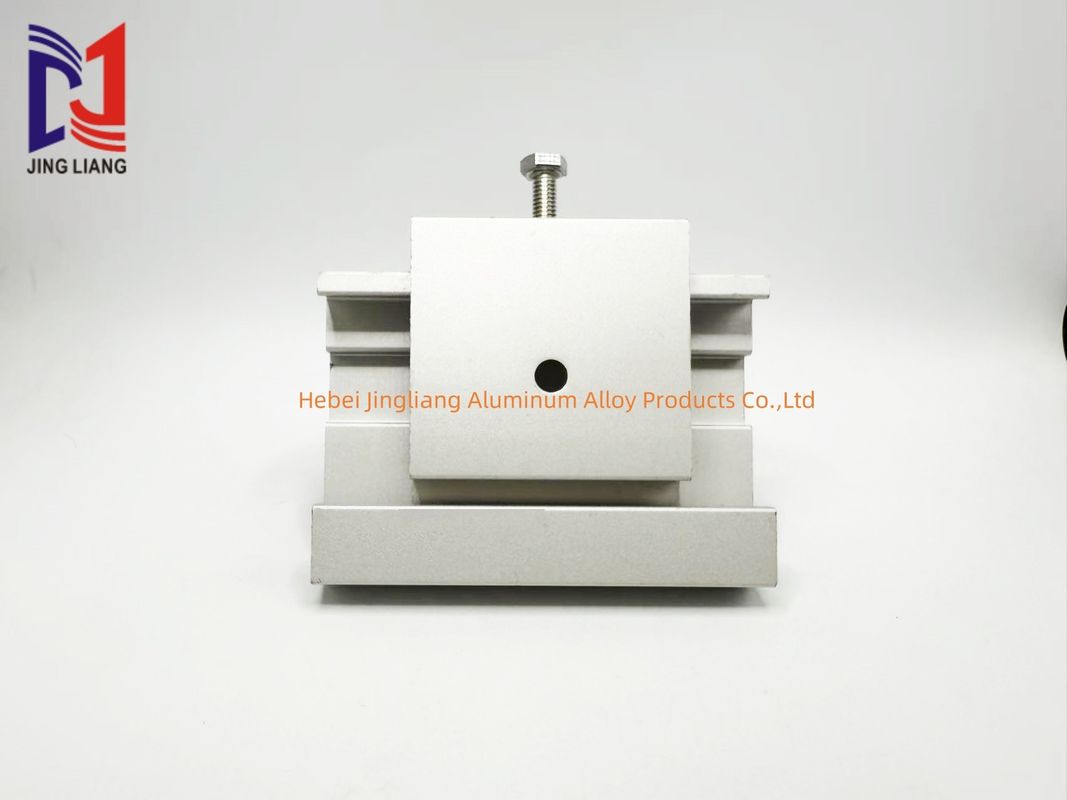

Customizable Lightweight Weatherproof Stone back bolt cantilever pendant

Product Discription

‌Stone back bolt cantilever hanger ‌ is a kind of connector used for stone curtain wall installation. Its main function is to fix the stone to the curtain wall frame by drilling holes on the back of the stone and installing back bolts. The design of the back bolt cantilever hanger makes it possible to prevent the stone plates from transferring loads, and each stone plate forms its own connection system‌.

Operating Principle

The structural principle of the back-bolt cantilever hanger is to use a special drilling device to drill holes on the back of the stone panel, then install stress-free bolts to fix them on the back of the stone, and then connect the bolts to the aluminum alloy hanger. The stone is dry-hung on the curtain wall frame through the aluminum alloy hanger connected to the frame. This structure makes each stone plate a self-contained connection system, and the adjacent plates do not transfer load effects. ‌

Feature

1.High safety and stability‌: Each back-bolt cantilever pendant evenly bears the weight of the stone, and the contact area between the pendant and the keel pendant is large, with good strength and stability, suitable for high-rise and super-high-rise exterior wall finishing‌

2‌.Easy to replace and maintain‌: Since each pendant bears the weight of the stone, the stone is not easy to fall off and is easy to replace‌

3‌.Surface cleaning‌: The surface of the back-bolt cantilever pendant is not easily contaminated, and the maintenance cost is low‌

‌4.Adapt to complex design‌: This connection method supports complex shape design, and can flexibly design various connectors according to the shape of the panel‌

Application

Back bolt cantilever pendants are widely used in various building exterior wall decorations, especially in high-rise and super high-rise buildings. Its open design reduces heat exchange and improves the aesthetics and environmental protection of the curtain wall. In addition, the back bolt cantilever pendant is suitable for various special-shaped parts and can meet different architectural design and construction needs.

Support and Service

Our Stone Cladding Support Systems are designed to provide a secure and durable method of attaching stone cladding to a building's exterior. Our technical support team is available to assist with any questions or concerns you may have regarding installation and maintenance of our products. Our services include on-site consultations to ensure proper installation, as well as ongoing maintenance and repair services. We also offer customized solutions for unique project requirements. Contact us for more information.
