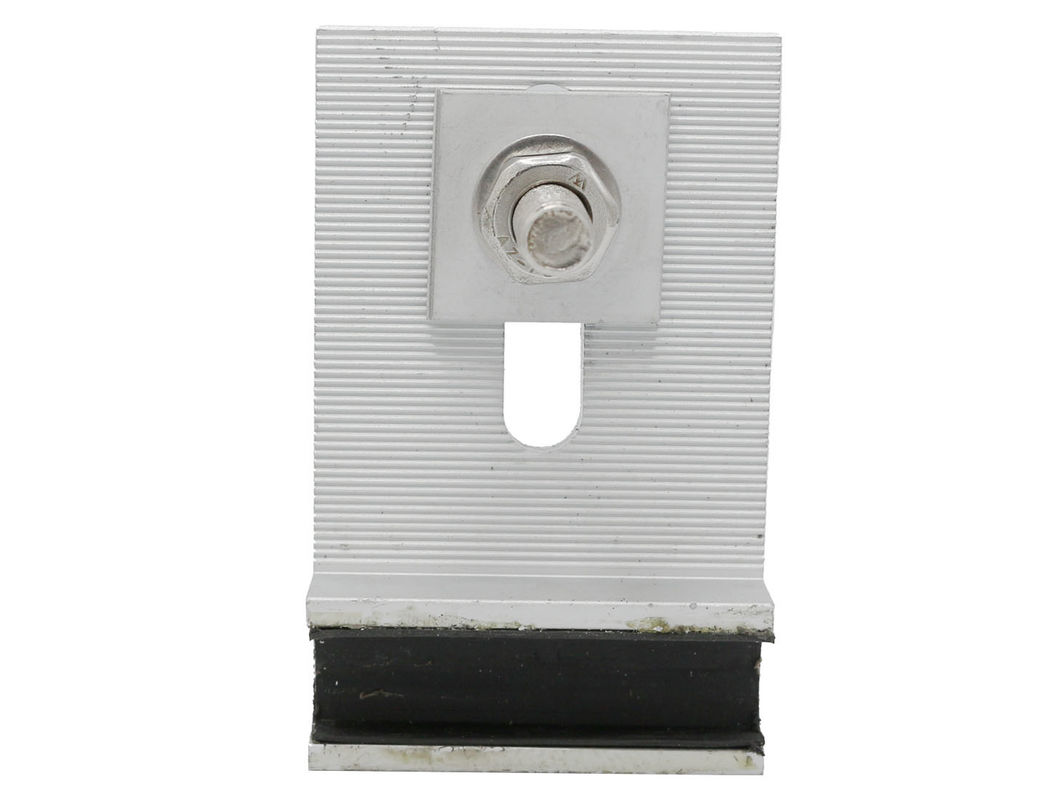

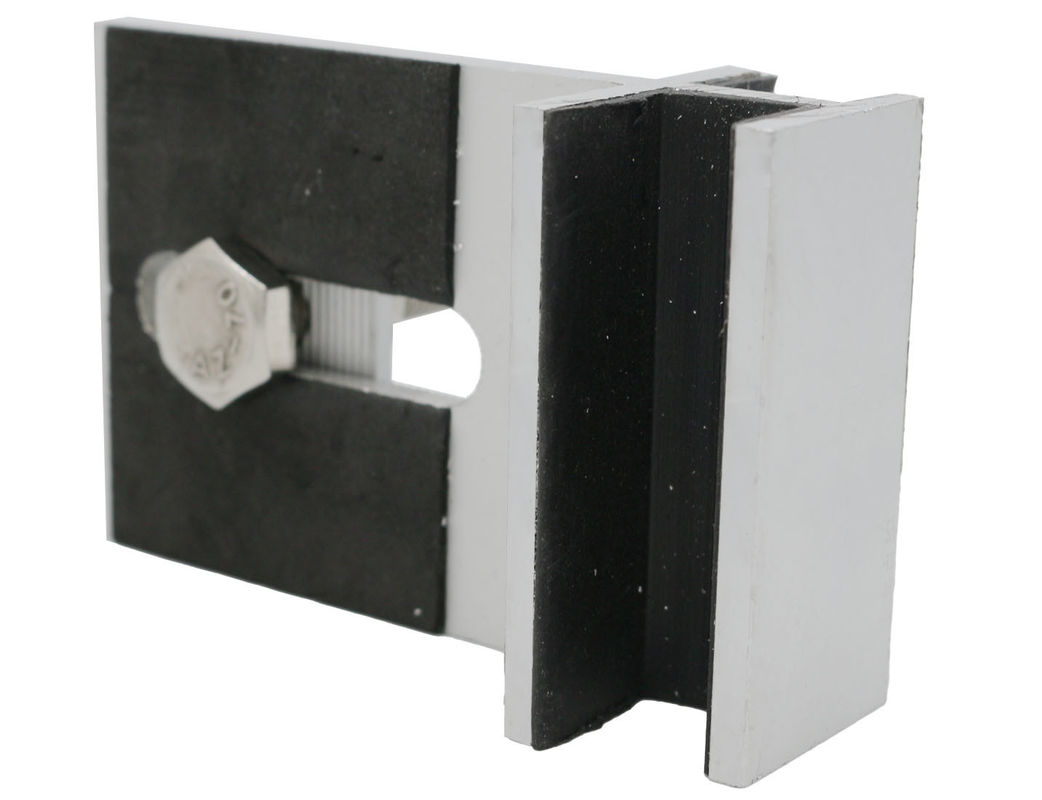

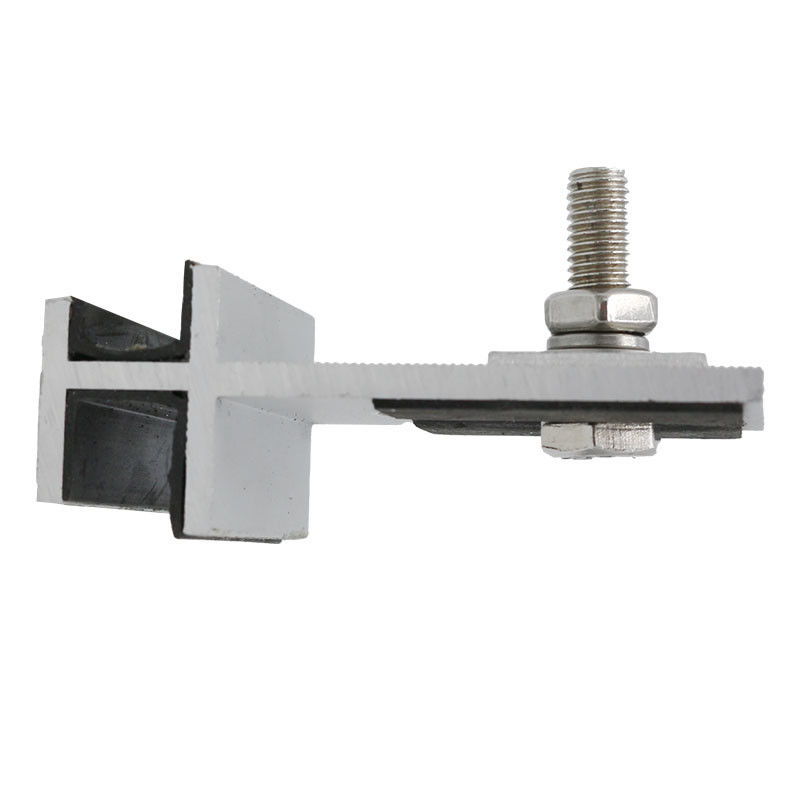

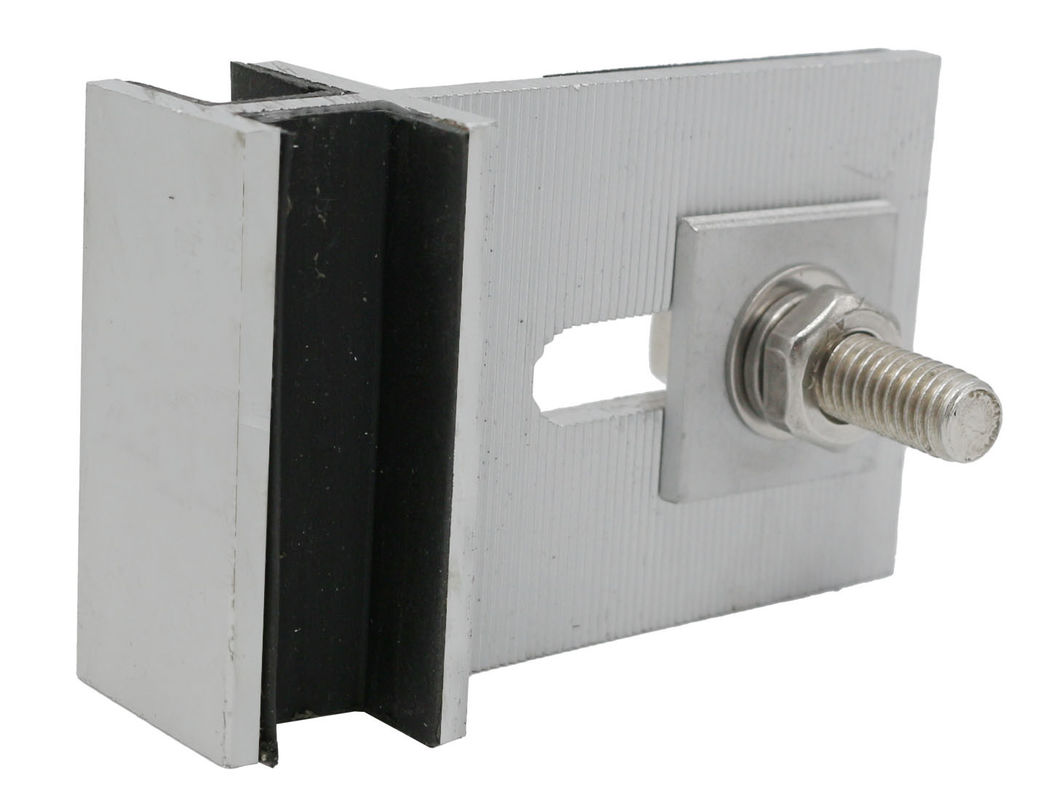

Terracotta Panel Fixing System Facade Cladding Aluminum Clips Exterior Wall 30mm Ceramic 3020

Terracotta Panel Fixing System Facade Cladding Aluminum Clips Exterior Wall 30mm Ceramic 3020

Our ceramic cladding fixings are of high quality and low price and are recognized by China. The material selection meets national standards and never uses recycled aluminum. According to the needs of our customers, we can design and produce pendant systems that compound your curtain wall structure.

The ceramic panel curtain wall installation system requires customized design and construction based on the design characteristics of the building facade and curtain wall products. Jingliang can provide professional installation technical support, installation systems and specialized installation accessories for specific projects. The installation accessories provided by Jingliang are made of high-quality aluminum alloy and EPDM sealing strips, which have sufficient corrosion resistance and strength, can withstand temperature changes and are easy to install.

Curtain wall fixings are extruded, lightweight, anti-aging, corrosion-resistant, high in strength, strong in firmness, and improved in earthquake resistance. Aluminum alloy curtain wall fixings are used to reliably connect the keel and panel, and a large adjustment distance can be obtained. This can not only increase the construction speed, but also enable modular installation, making replacement and maintenance easier.

Although the curtain wall fixings is only a small accessory in the entire stone curtain wall, it plays a vital role. It can be said that the fixing is one of the key accessories in the quality and safety issues of the entire terracotta curtain wall.

Material composition of curtain wall system

Material composition: General curtain wall system materials include: skeleton materials, panel materials, and connecting materials, etc.

1. Skeleton material classification: vertical keel, horizontal keel

2. Panel material classification: glass panel ( Glass, sub-frame, structural adhesive, double-sided tape), metal plate (metal plate, frame, stiffener, fixed angle aluminum), stone plate (stone plate, stainless steel or aluminum alloy pendant, epoxy resin glue).

3. Connection materials: connection between the main keel and the main structure (embedded parts, connecting angle steel, stainless steel connecting bolts, anti-corrosion gaskets), connection between the horizontal keel and the column (connecting aluminum angle codes, stainless steel connecting bolts, flexible gaskets), The connection between the panel and the horizontal keel (pressure blocks, aluminum alloy corner codes, stainless steel bolts, stainless steel pendants, etc.), other materials (weather-resistant sealant, foam strips, textured paper, galvanized fireproof board, fireproof cotton, lightning protection connecting piece, anti- Lightning equalizing ring, opening window accessories, ventilator, etc.).

Our company mainly engaged in the deep processing production and manufacturing of

curtain wall aluminum products: terracotta panel fixing,stone cladding fixing,wooden cladding fixing,facade joint；

Industrial aluminum alloy products: PC aluminum alloy mold, grille screen, turf handrail
and other customized aluminum products.
