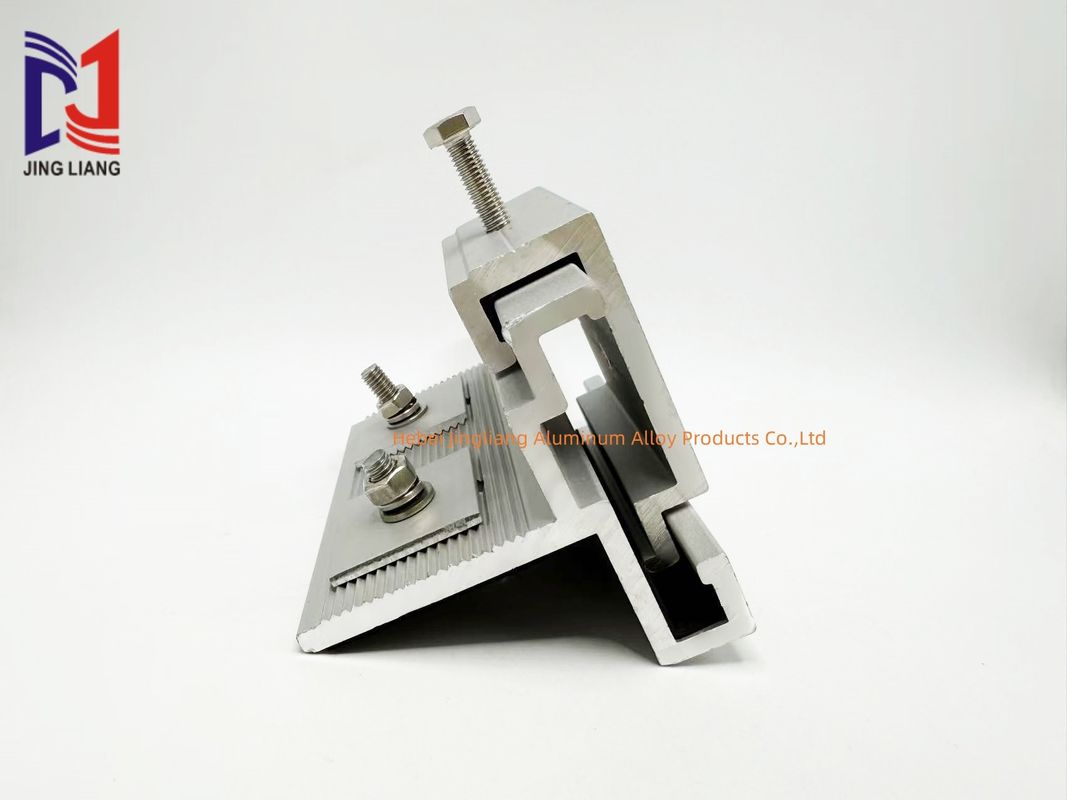

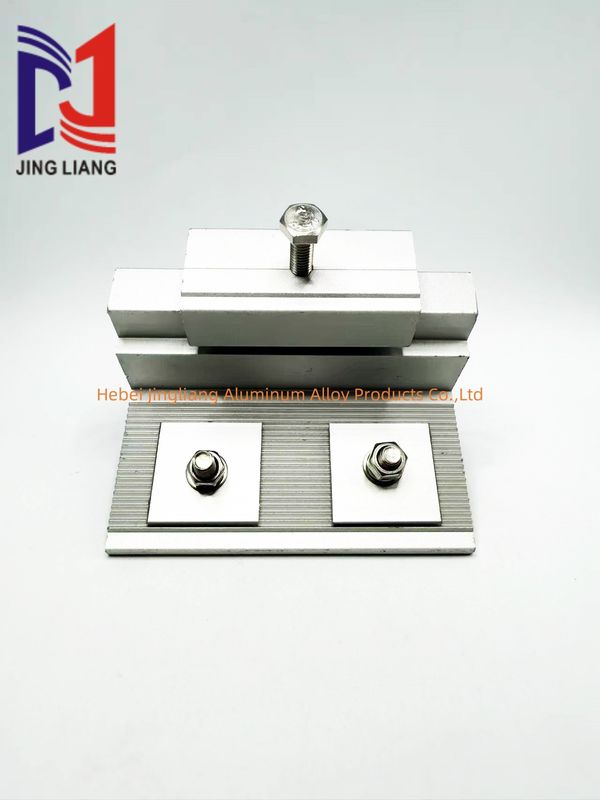

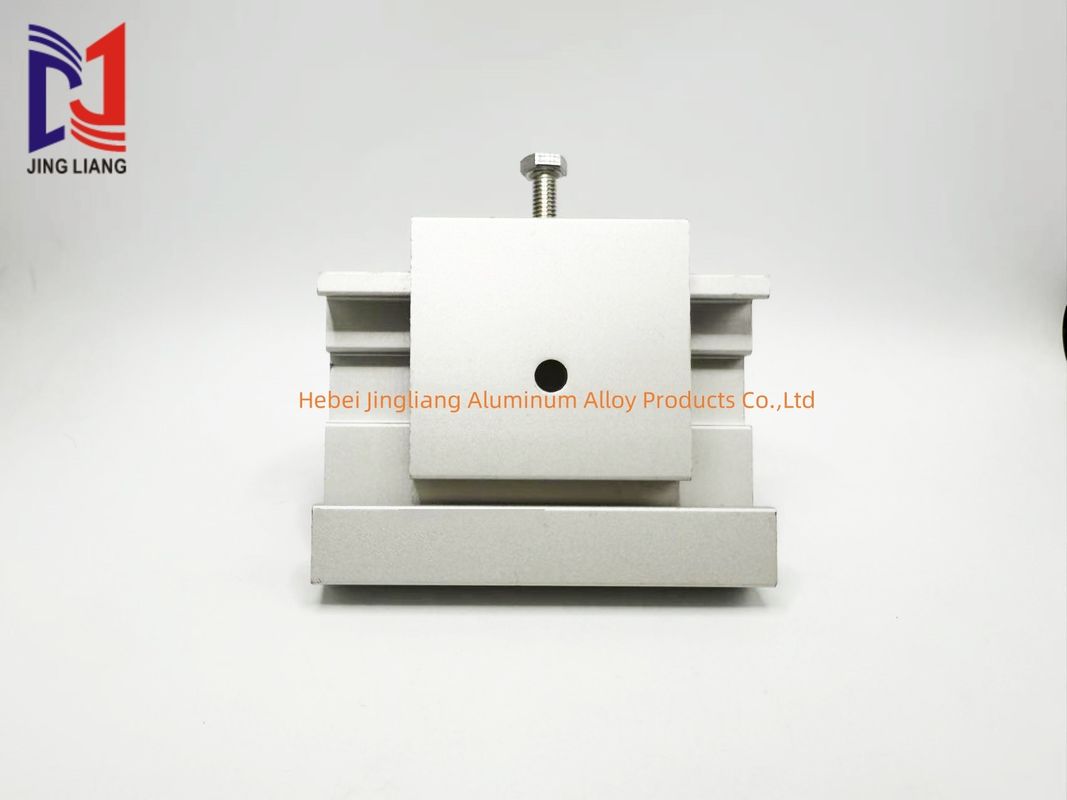

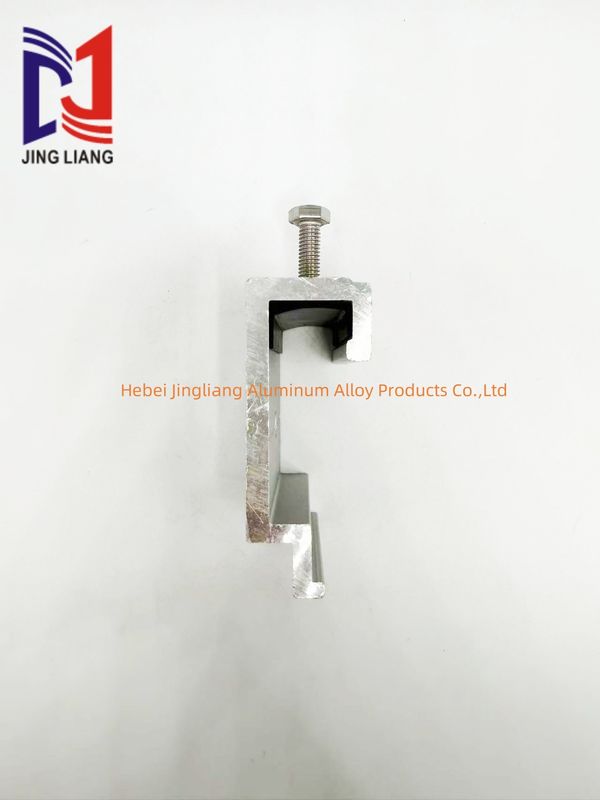

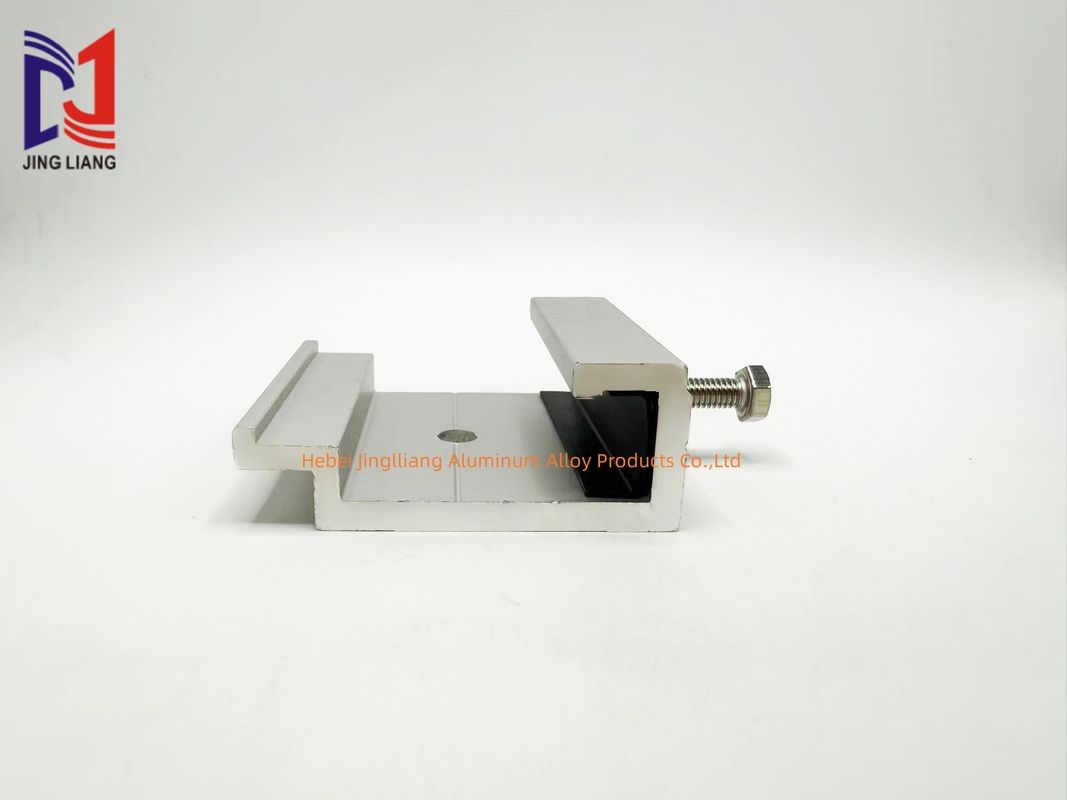

Customized Stone Cantilever Backbolt Bracket Solution For Stone ventilated Facade System

Product Discription

‌Stone  cantilever backbolt bracket is a kind of connector used for stone vetilated facade installation. Its main function is to fix the stone to the curtain wall frame by drilling holes on the back of the stone and installing back bolts. The design of the back bolt cantilever brackets makes it possible to prevent the stone plates from transferring loads, and each stone panel forms its own connection system‌.

Operating Principle

The structural principle of the back-bolt cantilever bracket is to use a special drilling device to drill holes on the back of the stone panel, then install  backbolts to fix them on the back of the stone, and then connect the bolts to this bracket. The stone is connected on the rail through this bracket . This structure makes each stone plate a self-contained connection system, and the adjacent plates do not transfer load effects. ‌This set of products can be adjusted up and down, front and back, to adjust the flatness of the board surface.

Feature

1.High safety and stability‌: Each back-bolt cantilever bracket evenly bears the weight of the stone, and the contact area between the bracket and the rail pendan is large, with good strength and stability, suitable for high-rise and super-high-rise exterior wall finishing‌

2‌.Easy to replace and maintain‌: Since each bracket bears the weight of the stone, the stone is not easy to fall off and is easy to replace‌

‌3.Adapt to complex design‌: This connection method supports complex shape design, and can flexibly design various connectors according to the shape of the panel‌

4.This set of products can be adjusted up and down, front and back, to adjust the flatness of the board surface.

Application

Cantilever backbolt Bracket are widely used in various building exterior wall decorations, especially in high-rise and super high-rise buildings. Its open design reduces heat exchange and improves the aesthetics and environmental protection of the facade. In addition, the back bolt cantilever bracket is suitable for various special-shaped parts and can meet different architectural design and construction needs.

Support and Service

Our Cladding Support Systems product comes with comprehensive technical support and services to ensure proper installation and long-term performance. Our team of experts can provide assistance with design, product selection, and installation details to ensure that your project meets all safety and code requirements. .Contact us for more information about our technical support and services.
