30mm Terracotta Facade System

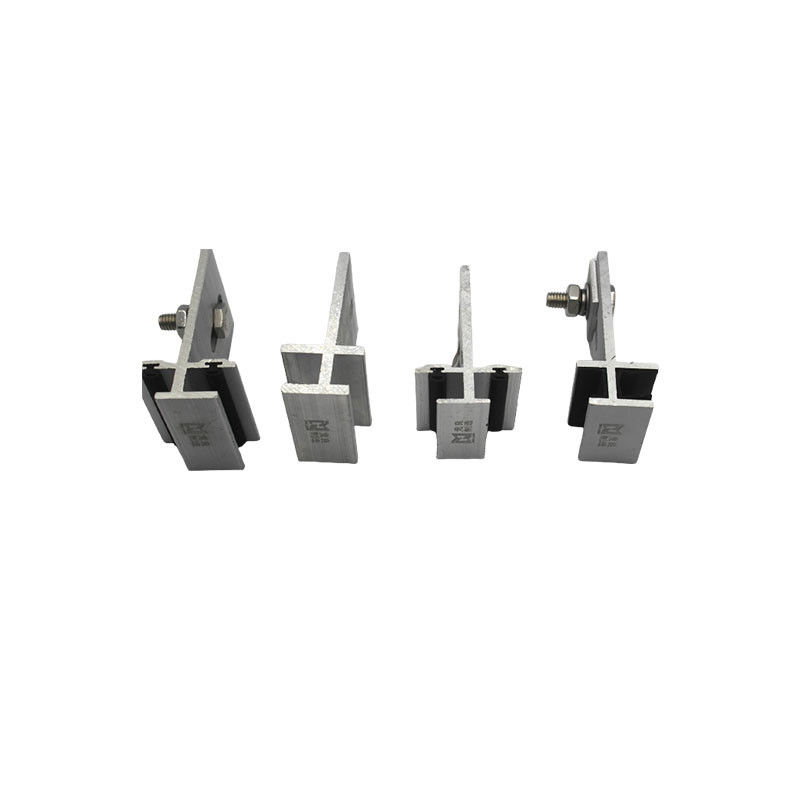

Terracotta Panel Fixing System Facade Cladding Aluminum Clips Exterior Wall 30mm Ceramic 3021

Our ceramic cladding fixings are of high quality and low price and are recognized by China. The material selection meets national standards and never uses recycled aluminum. According to the needs of our customers, we can design and produce pendant systems that compound your curtain wall structure.

The ceramic panel curtain wall installation system requires customized design and construction based on the design characteristics of the building facade and curtain wall products. Jingliang can provide professional installation technical support, installation systems and specialized installation accessories for specific projects. The installation accessories provided by Jingliang are made of high-quality aluminum alloy and EPDM sealing strips, which have sufficient corrosion resistance and strength, can withstand temperature changes and are easy to install.

Ceramic panel curtain wall connection and installation:

Ceramic panel curtain wall is a new type of curtain wall system after glass curtain wall, metal panel curtain wall and stone curtain wall. It has the characteristics of uniform color, fading, self-cleaning, green and environmentally friendly, no radiation, high stiffness, light weight, fire protection, anti-corrosion, simple design and installation It has characteristics such as good performance and is deeply loved by architects.

There are currently four installation and fixation methods for ceramic panel curtain walls: direct plate snap-in, pendant mounting, back-bolt connection, and pressure plate crimping. The application is a dry hanging system

The dry hanging system of ceramic panel curtain wall has the following advantages:

1. Good exterior wall protection function

2. Back ventilation function

3. Anti-wind pressure and anti-seismic functions

4. Install seam-parting rubber strips, which have triple functions of waterproofing, anti-lateral movement and anti-collision.

5. Complete drainage system

Our company mainly engaged in the deep processing production and manufacturing of

curtain wall aluminum products: terracotta panel fixing,stone cladding fixing,wooden cladding fixing,facade joint；

Industrial aluminum alloy products: PC aluminum alloy mold, grille screen, turf handrail
and other customized aluminum products.

Installation:

First, position and set the embedded parts during the construction of the building structure according to the lattice diagram of the ceramic panel curtain wall; reliably connect the vertical keels and the embedded parts by connecting corner codes; position the beams and vertical keels according to the curtain wall style diagram; install stainless steel reducers Shock spring piece; hang the upper groove of the ceramic plate on the beam, press down the plate surface with the help of installation tools, so that the lower groove of the ceramic plate is locked on the hook below the beam; the ceramic plate at the scaffold can be installed later.
