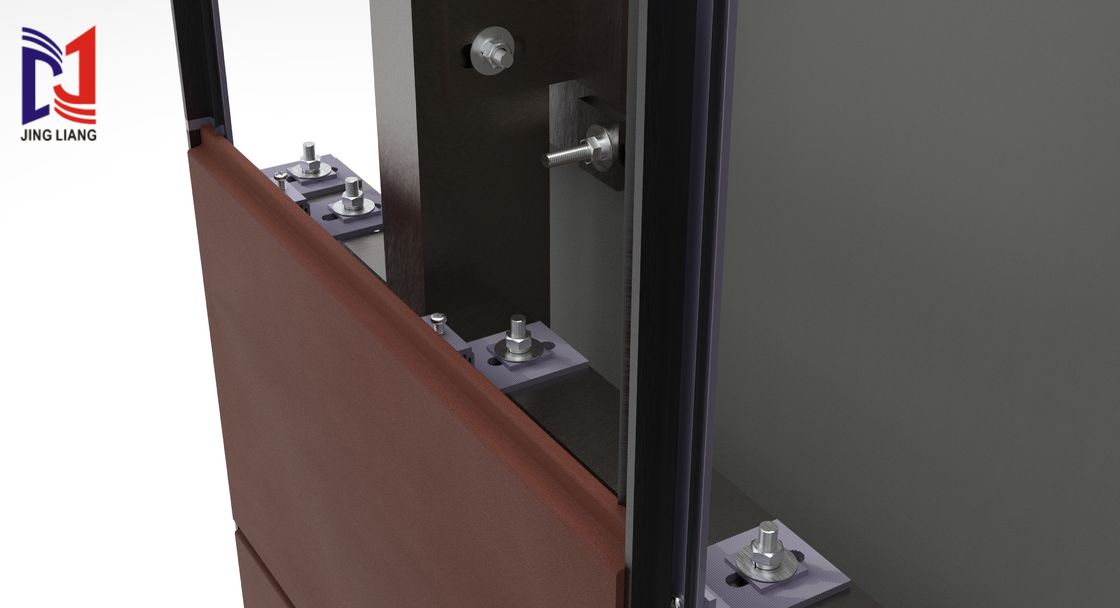

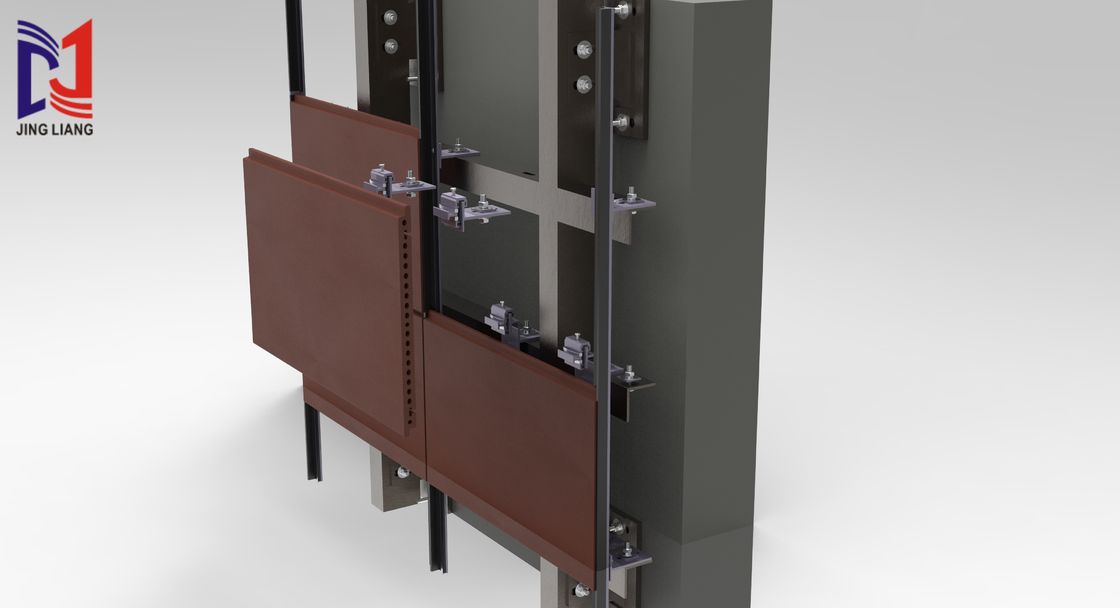

The terracotta ventilated support system for 18mm panels is a building enclosure system that uses 18mm thick terracotta panels as the exterior finish, combined with a metal support frame and ventilation cavity. The system achieves air circulation through open joints or ventilators, combining both decorative and functional properties, and is a common form of modern facade.
System Composition
18mm terracotta panel,made of natural clay fired at high temperature, thickness 18mm (both strength and lightness)

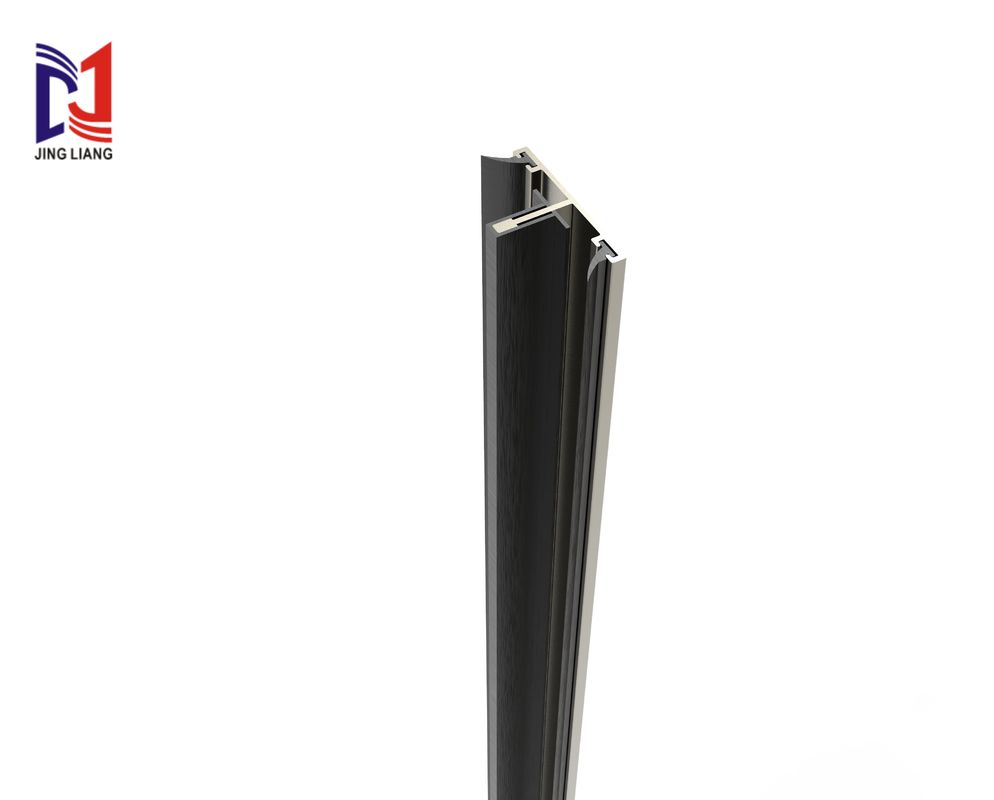

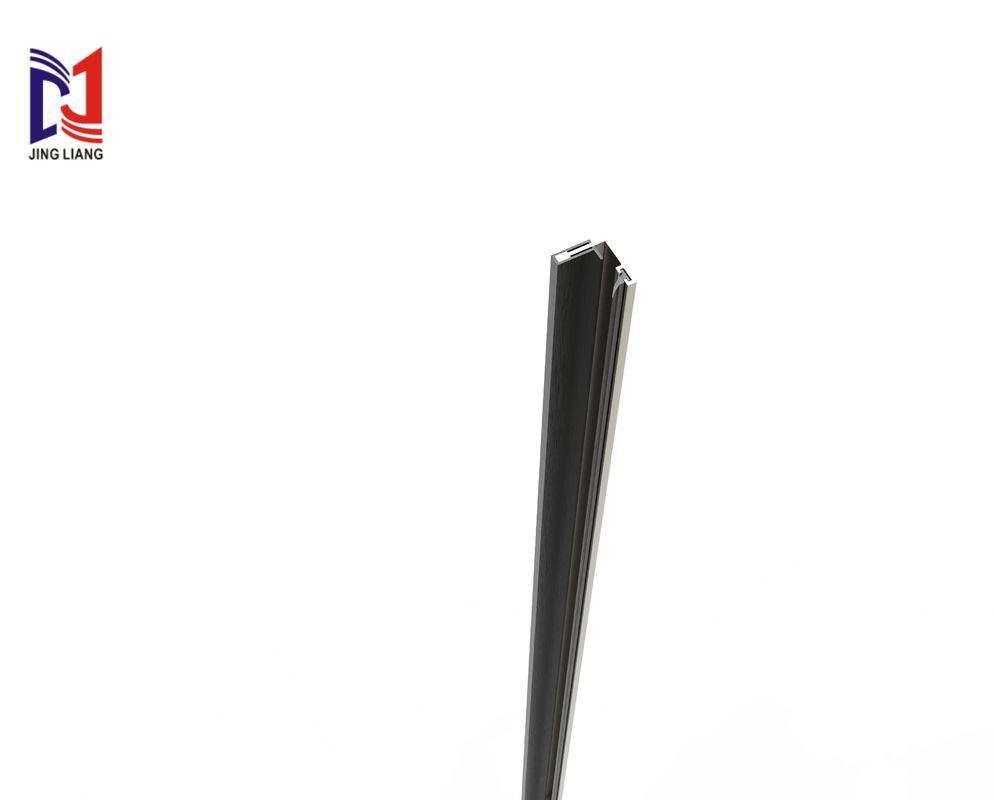

Main rails: usually made of aluminum alloy (6063-T5/T6) or hot-dip galvanized steel, arranged vertically, bear the main load

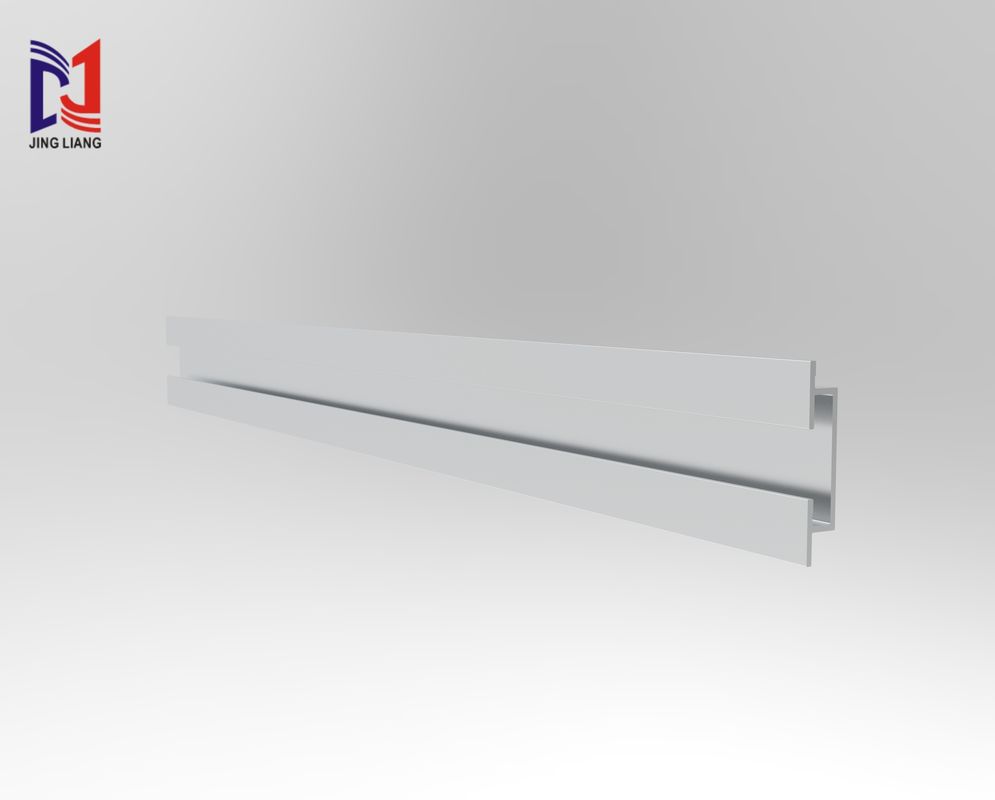

Secondary rails: horizontal aluminum alloy component, forming a grid frame with the main rail

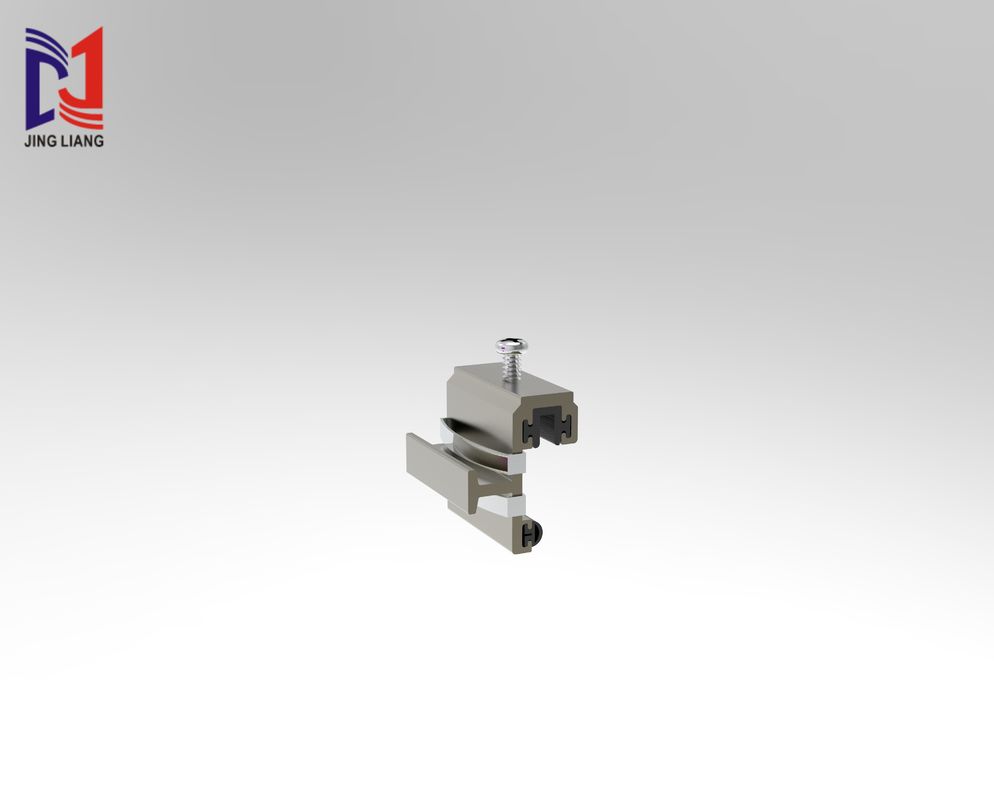

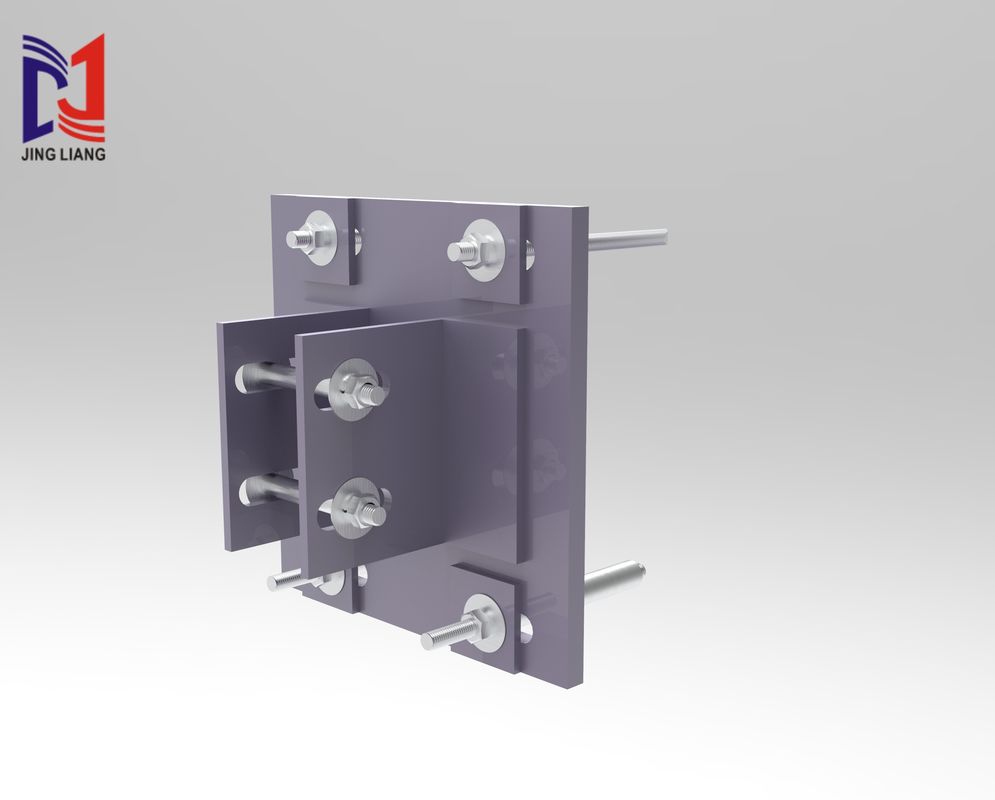

Connector:Stainless steel pendant (such as SE type, back bolt type) and seismic sliding support (allowing ±15mm displacement)
Features:
Strong points: Terracotta panels are UV-resistant, acid-resistant, and have good color stability. They are not easy to fade after long-term use.18mm thickness panel provides high impact and wind pressure resistance, suitable for harsh climate areas.The ventilation cavity forms a "chimney effect", which promotes the discharge of hot air in summer and reduces the building's cooling load; in winter, it can be combined with an insulation layer to reduce the risk of condensation.
Open-style system design avoids water accumulation and reduces mildew growth; maintenance costs is relatively low .
Weak points:
The depth of the ventilation cavity (usually 100-300mm), drainage path and seismic joints need to be accurately calculated, otherwise the performance may be affected.Open joints need to control the width (usually 5-10mm) to prevent wind and rain penetration, and additional waterproof lining may be required.
Applications:
This terracotta ventilated facade support system show good performance in energy-saving and ventilation design. The cavity structure promotes air convection, reduces the building surface temperature in summer (can reduce air conditioning load by about 20%), and forms an insulation layer in winter.Each terracotta panel is fixed independently, which is easy to replace when damaged, reducing maintenance costs.
The terracott panel can provide matte, glazed and other surface treatments, with various colors (red, gray, white, etc.), and supports special-shaped cutting.
Support and Services:
Our terracotta ventilated facade support system comes with comprehensive technical support and services to ensure proper installation and long-term performance. Our team of experts can provide assistance with design, product selection, and installation details to ensure that your project meets all safety and code requirements. Contact us for more information about our technical support and services.
Packing and Shipping:
Our products will be packaged reasonably, and considering environmental protection, we choose low-carbon and pollution-free packaging materials.Our products are packaged in custom-made package that are designed to protect the product from damage during transportation.
The system is shipped using reliable and reputable shipping companies to ensure timely and safe delivery. Our team carefully monitors the shipping process to make sure that your order arrives in perfect condition.
We offer various shipping options to accommodate your specific needs, including ground, air, and sea transportation. Our team will work with you to determine the best option.
